Risers
Internal and external risers for voestalpine Metsec cable ladders are available with 90° rotation and 300mm radius as standard with 30°, 45° and 60° variations and 450mm, 600mm, 750mm and 900mm radii produced to order. A flexible articulated riser is also available and is made to order.
Risers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.
Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.
Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L) to order.
Closed and ventilated covers are available for all risers.
90º External Riser
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/90R300 | LER100/0150HDG/90R300 | LER125/0150HDG/90R300 | LER150/0150HDG/90R300 |
| 300 | LER050/0300HDG/90R300 | LER100/0300HDG/90R300 | LER125/0300HDG/90R300 | LER150/0300HDG/90R300 |
| 400 | LER050/0450HDG/90R300 | LER100/0450HDG/90R300 | LER125/0450HDG/90R300 | LER150/0450HDG/90R300 |
| 600 | N/A | LER100/0600HDG/90R300 | LER125/0600HDG/90R300 | LER150/0600HDG/90R300 |
| 750 | N/A | LER100/0750HDG/90R300 | LER125/0750HDG/90R300 | LER150/0750HDG/90R300 |
| 900 | N/A | LER100/0900HDG/90R300 | LER125/0900HDG/90R300 | LER150/0900HDG/90R300 |

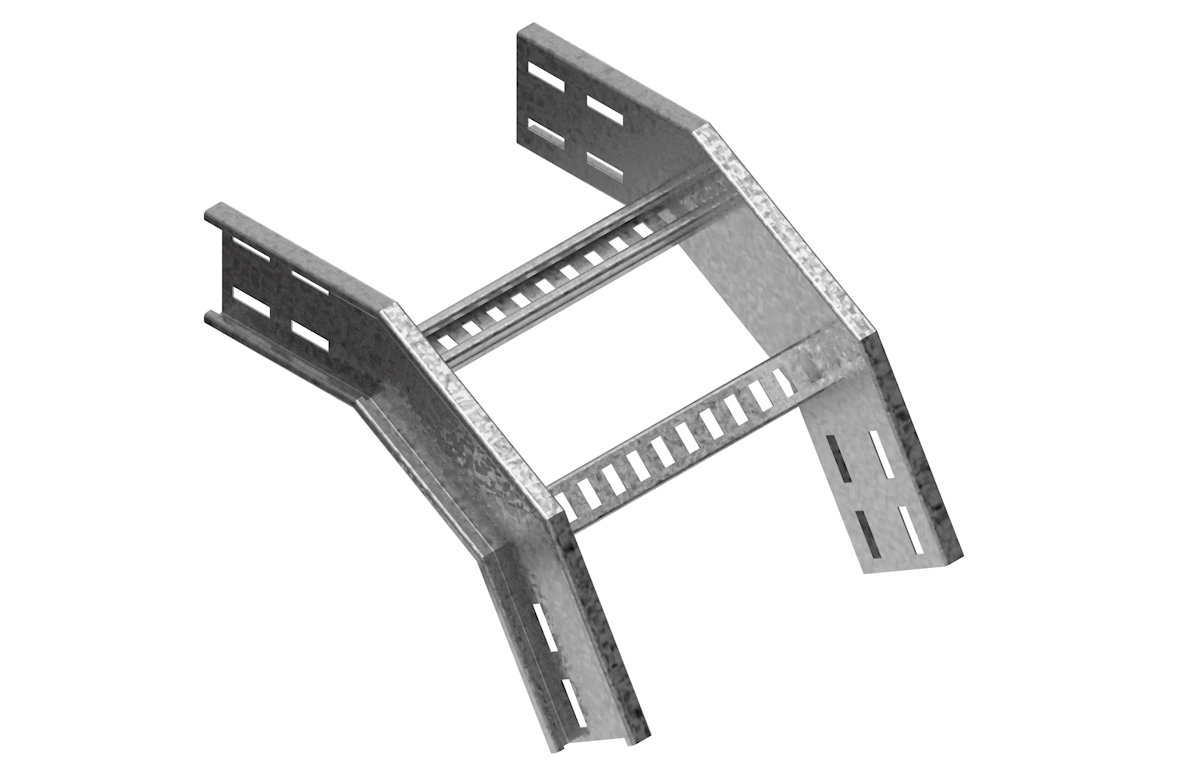

60º External Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/60R300 | LER100/0150HDG/60R300 | LER125/0150HDG/60R300 | LER150/0150HDG/60R300 |
| 300 | LER050/0300HDG/60R300 | LER100/0300HDG/60R300 | LER125/0300HDG/60R300 | LER150/0300HDG/60R300 |
| 400 | LER050/0450HDG/60R300 | LER100/0450HDG/60R300 | LER125/0450HDG/60R300 | LER150/0450HDG/60R300 |
| 600 | N/A | LER100/0600HDG/60R300 | LER125/0600HDG/60R300 | LER150/0600HDG/60R300 |
| 750 | N/A | LER100/0750HDG/60R300 | LER125/0750HDG/60R300 | LER150/0750HDG/60R300 |
| 900 | N/A | LER100/0900HDG/60R300 | LER125/0900HDG/60R300 | LER150/0900HDG/60R300 |
45º External Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/45R300 | LER100/0150HDG/45R300 | LER125/0150HDG/45R300 | LER150/0150HDG/45R300 |
| 300 | LER050/0300HDG/45R300 | LER100/0300HDG/45R300 | LER125/0300HDG/45R300 | LER150/0300HDG/45R300 |
| 400 | LER050/0450HDG/45R300 | LER100/0450HDG/45R300 | LER125/0450HDG/45R300 | LER150/0450HDG/45R300 |
| 600 | N/A | LER100/0600HDG/45R300 | LER125/0600HDG/45R300 | LER150/0600HDG/45R300 |
| 750 | N/A | LER100/0750HDG/45R300 | LER125/0750HDG/45R300 | LER150/0750HDG/45R300 |
| 900 | N/A | LER100/0900HDG/45R300 | LER125/0900HDG/45R300 | LER150/0900HDG/45R300 |
30º Internal Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LER050/0150HDG/30R300 | LER100/0150HDG/30R300 | LER125/0150HDG/30R300 | LER150/0150HDG/30R300 |
| 300 | LER050/0300HDG/30R300 | LER100/0300HDG/30R300 | LER125/0300HDG/30R300 | LER150/0300HDG/30R300 |
| 400 | LER050/0450HDG/30R300 | LER100/0450HDG/30R300 | LER125/0450HDG/30R300 | LER150/0450HDG/30R300 |
| 600 | N/A | LER100/0600HDG/30R300 | LER125/0600HDG/30R300 | LER150/0600HDG/30R300 |
| 750 | N/A | LER100/0750HDG/30R300 | LER125/0750HDG/30R300 | LER150/0750HDG/30R300 |
| 900 | N/A | LER100/0900HDG/30R300 | LER125/0900HDG/30R300 | LER150/0900HDG/30R300 |
90º Internal Riser
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LIR050/0150HDG/90R300 | LIR100/0150HDG/90R300 | LIR125/0150HDG/90R300 | LIR150/0150HDG/90R300 |
| 300 | LIR050/0300HDG/90R300 | LIR100/0300HDG/90R300 | LIR125/0300HDG/90R300 | LIR150/0300HDG/90R300 |
| 400 | LIR050/0450HDG/90R300 | LIR100/0450HDG/90R300 | LIR125/0450HDG/90R300 | LIR150/0450HDG/90R300 |
| 600 | N/A | LIR100/0600HDG/90R300 | LIR125/0600HDG/90R300 | LIR150/0600HDG/90R300 |
| 750 | N/A | LIR100/0750HDG/90R300 | LIR125/0750HDG/90R300 | LIR150/0750HDG/90R300 |
| 900 | N/A | LIR100/0900HDG/90R300 | LIR125/0900HDG/90R300 | LIR150/0900HDG/90R300 |
60º Internal Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LIR050/0150HDG/60R300 | LIR100/0150HDG/60R300 | LIR125/0150HDG/60R300 | LIR150/0150HDG/60R300 |
| 300 | LIR050/0300HDG/60R300 | LIR100/0300HDG/60R300 | LIR125/0300HDG/60R300 | LIR150/0300HDG/60R300 |
| 400 | LIR050/0450HDG/60R300 | LIR100/0450HDG/60R300 | LIR125/0450HDG/60R300 | LIR150/0450HDG/60R300 |
| 600 | N/A | LIR100/0600HDG/60R300 | LIR125/0600HDG/60R300 | LIR150/0600HDG/60R300 |
| 750 | N/A | LIR100/0750HDG/60R300 | LIR125/0750HDG/60R300 | LIR150/0750HDG/60R300 |
| 900 | N/A | LIR100/0900HDG/60R300 | LIR125/0900HDG/60R300 | LIR150/0900HDG/60R300 |
45º Internal Riser (Made to Order)
Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).
Finish: hot dip galvanised = HDG, substitute SS within part number for stainless steel grade 1.4404 (316L)
| Width mm | Light Duty 50mm Deep | Medium Duty 100mm Deep | Heavy Duty 125mm Deep | Extra Heavy Duty 150mm Deep |
| 150 | LIR050/0150HDG/45R300 | LIR100/0150HDG/45R300 | LIR125/0150HDG/45R300 | LIR150/0150HDG/45R300 |
| 300 | LIR050/0300HDG/45R300 | LIR100/0300HDG/45R300 | LIR125/0300HDG/45R300 | LIR150/0300HDG/45R300 |
| 400 | LIR050/0450HDG/45R300 | LIR100/0450HDG/45R300 | LIR125/0450HDG/45R300 | LIR150/0450HDG/45R300 |
| 600 | N/A | LIR100/0600HDG/45R300 | LIR125/0600HDG/45R300 | LIR150/0600HDG/45R300 |
| 750 | N/A | LIR100/0750HDG/45R300 | LIR125/0750HDG/45R300 | LIR150/0750HDG/45R300 |
| 900 | N/A | LIR100/0900HDG/45R300 | LIR125/0900HDG/45R300 | LIR150/0900HDG/45R300 |
