Pre-Galvanised 90 degree Internal Riser Cover

Covers

voestalpine Metsec produce, to order, a range of closed and ventilated covers for the entire voestalpine Metsec cable ladder system. Materials and finishes available are mild steel hot dip galvanised as standard and stainless steel grade 1.4404 (316L).

Straight Length Covers

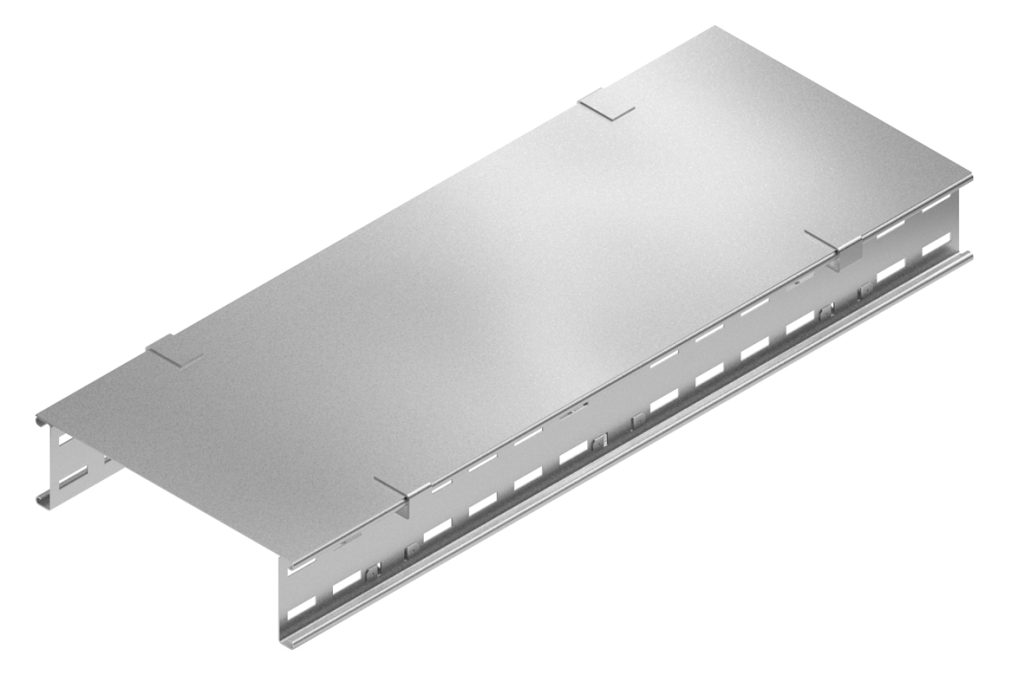

Straight Length Covers – 1.5m Long (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes 4 fixing clamps and fasteners, 2 covers required for 3m ladder, 4 covers for 6m ladder

Straight Length Covers – 1.5m Long (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes 4 fixing clamps and fasteners, 2 covers required for 3m ladder, 4 covers for 6m ladder

Width mm
150LSLC/0150PG/1.5
300LSLC/0300PG/1.5
450LSLC/0450PG/1.5
600LSLC/0600PG/1.5
750LSLC/0750PG/1.5
900LSLC/0900PG/1.5

Extra Fixing Clamps

Pack of 10 (includes fasteners)

Standard cover clipVentilated cover clip
L/CCCStandard over clip Cable LadderL/CCVVentilated cover clip Cable Ladder

Flat Bend Covers

90º Flat Bend Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LFBC/0150PG/90R300
300LFBC/0300PG/90R300
450LFBC/0450PG/90R300
600LFBC/0600PG/90R300
750LFBC/0750PG/90R300
900LFBC/0900PG/90R300

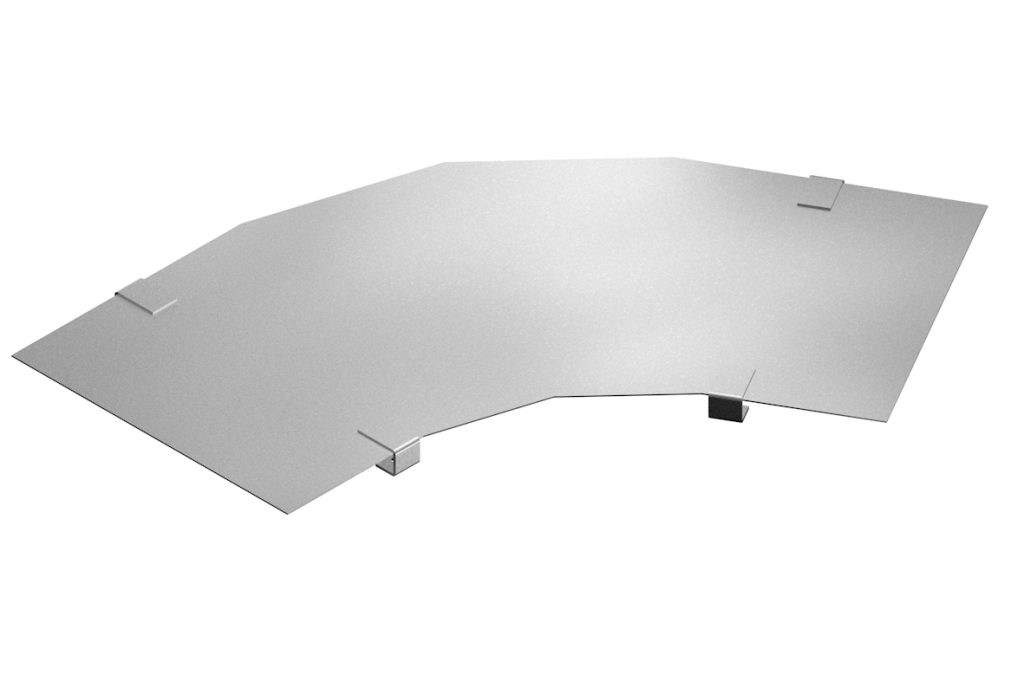

60º Flat Bend Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LFBC/0150PG/60R300
300LFBC/0300PG/60R300
450LFBC/0450PG/60R300
600LFBC/0600PG/60R300
750LFBC/0750PG/60R300
900LFBC/0900PG/60R300

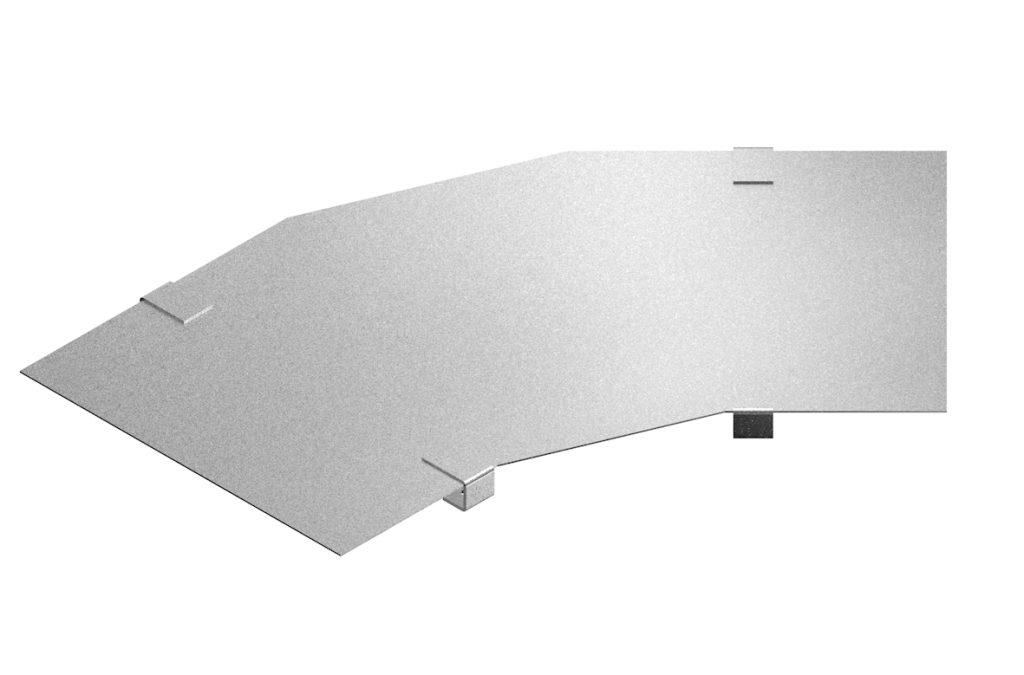

45º Flat Bend Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LFBC/0150PG/45R300
300LFBC/0300PG/45R300
450LFBC/0450PG/45R300
600LFBC/0600PG/45R300
750LFBC/0750PG/45R300
900LFBC/0900PG/45R300

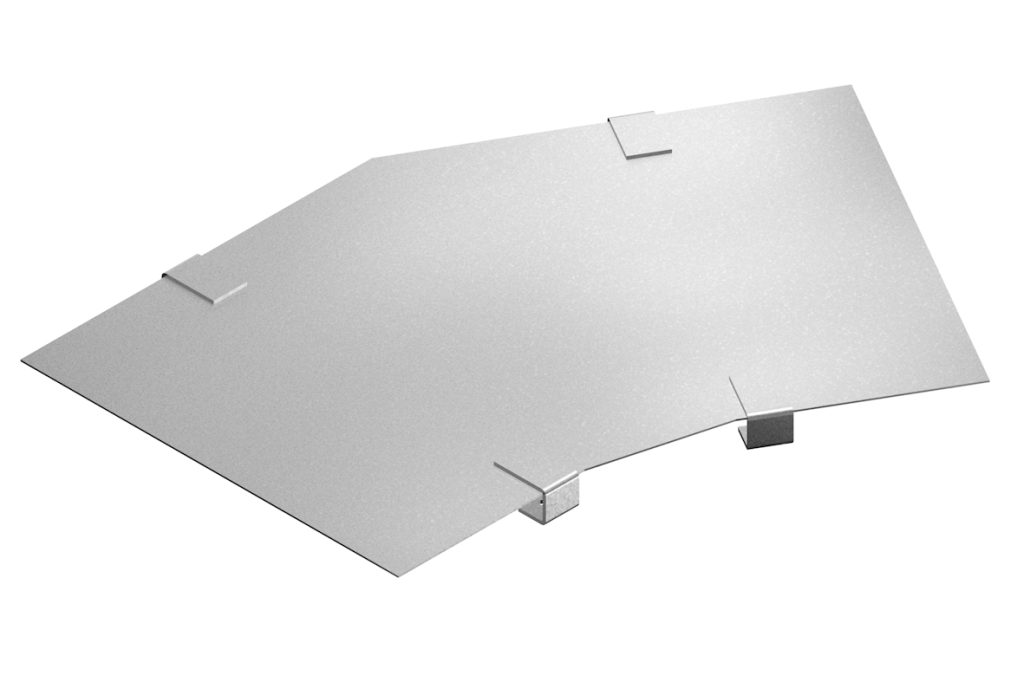

30º Flat Bend Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LFBC/0150PG/30R300
300LFBC/0300PG/30R300
450LFBC/0450PG/30R300
600LFBC/0600PG/30R300
750LFBC/0750PG/30R300
900LFBC/0900PG/30R300

Tees & Crossover Covers

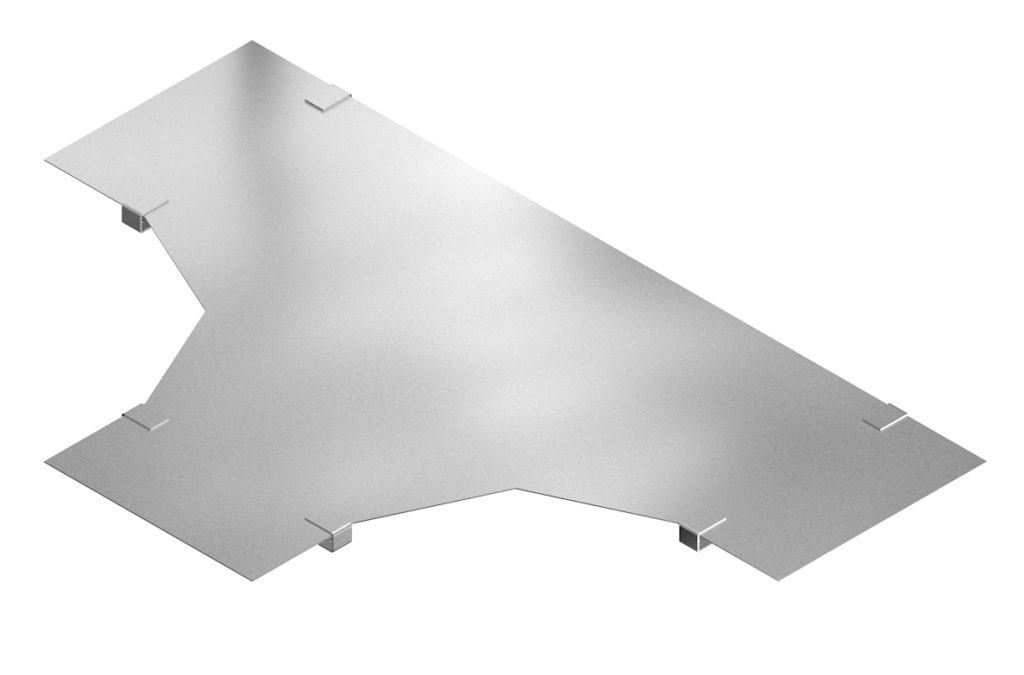

Equal Tee Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LETC/0150PGR300
300LETC/0300PGR300
450LETC/0450PGR300
600LETC/0600PGR300
750LETC/0750PGR300
900LETC/0900PGR300

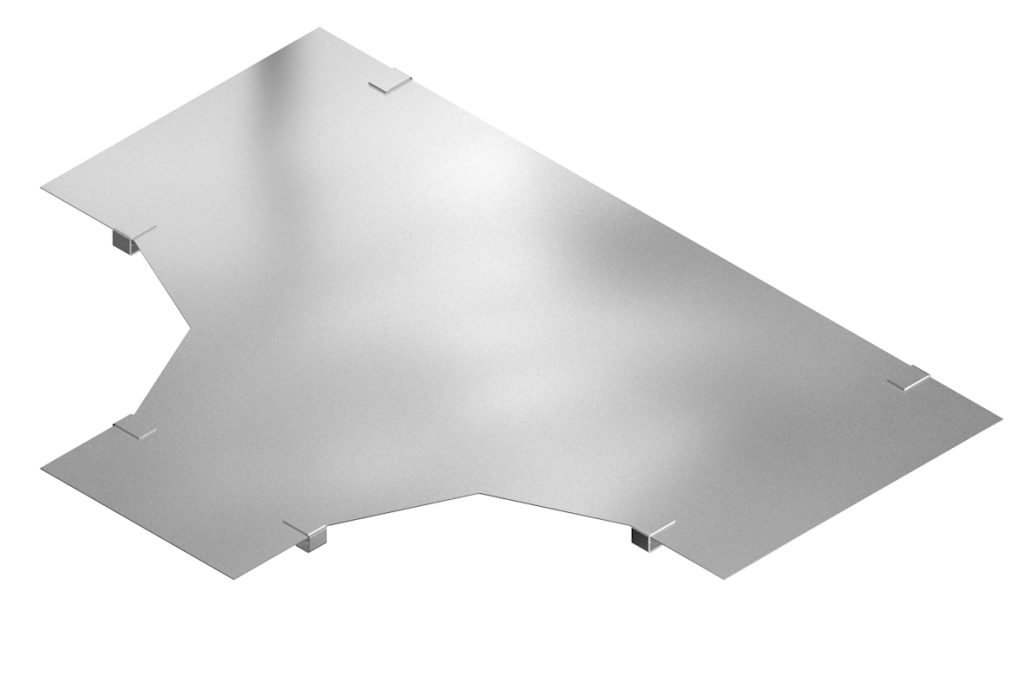

Unequal Tee Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900.

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

How to generate the part number – LUT (cover type)/W1/W2(finish)(radius)

Example – LUTC/300/150/PGR300

Table below shows a complete list of W1 and W2 combinations.

W1W2
150300, 450, 600, 750, 900
300150, 450, 600, 750, 900
450150, 300, 600, 750, 900
600150, 300, 450, 750, 900
750150, 300, 450, 600, 900
900150, 300, 450, 600, 750

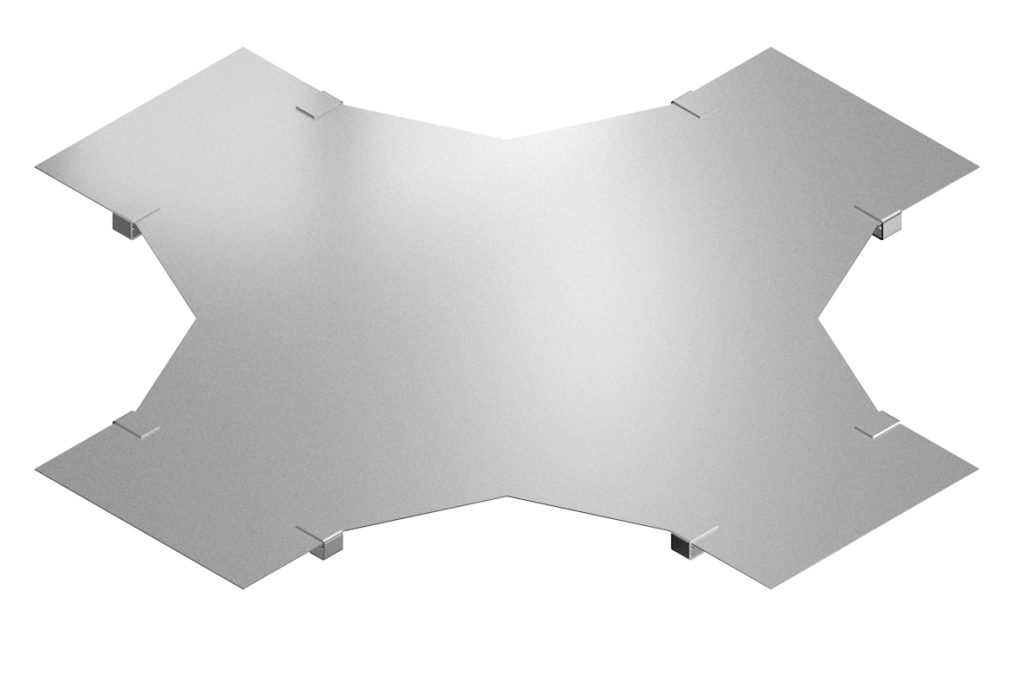

Crossover Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LCOC/0150PGR300
300LCOC/0300PGR300
450LCOC/0450PGR300
600LCOC/0600PGR300
750LCOC/0750PGR300
900LCOC/0900PGR300

Reducer Covers

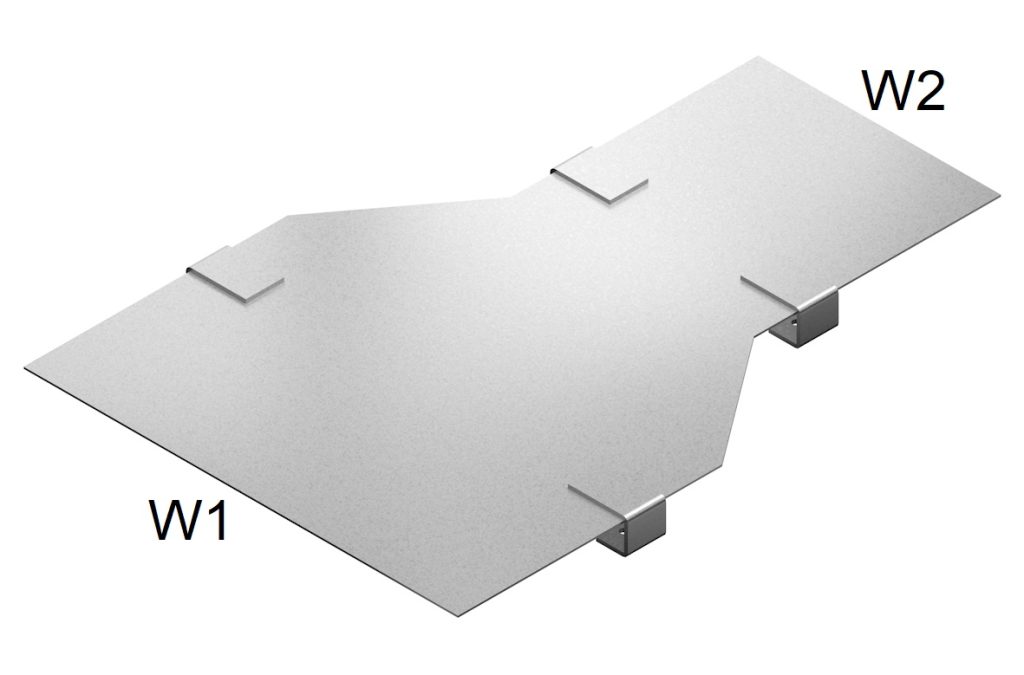

Straight Reducer Covers (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
W1W2
300150LSRC/0300/0150PG
450150LSRC/0450/0150PG
600150LSRC/0600/0150PG
750150LSRC/0750/0150PG
900150LSRC/0900/0150PG
450300LSRC/0450/0300PG
600300LSRC/0600/0300PG
750300LSRC/0750/0300PG
900300LSRC/0900/0300PG
600450LSRC/0600/0450PG
750450LSRC/0750/0450PG
900450LSRC/0900/0450PG
750600LSRC/0750/0600PG
900600LSRC/0900/0600PG
900750LSRC/0900/0750PG

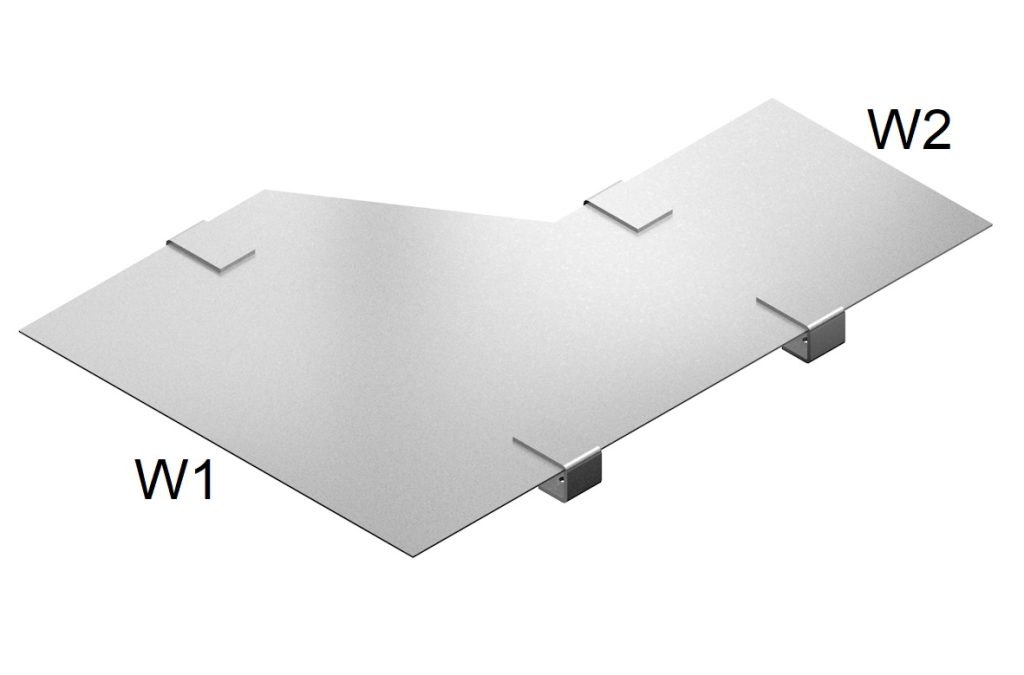

Left Hand Reducer Covers (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
W1W2
300150LLRC/0300/0150PG
450150LLRC/0450/0150PG
600150LLRC/0600/0150PG
750150LLRC/0750/0150PG
900150LLRC/0900/0150PG
450300LLRC/0450/0300PG
600300LLRC/0600/0300PG
750300LLRC/0750/0300PG
900300LLRC/0900/0300PG
600450LLRC/0600/0450PG
750450LLRC/0750/0450PG
900450LLRC/0900/0450PG
750600LLRC/0750/0600PG
900600LLRC/0900/0600PG
900750LLRC/0900/0750PG

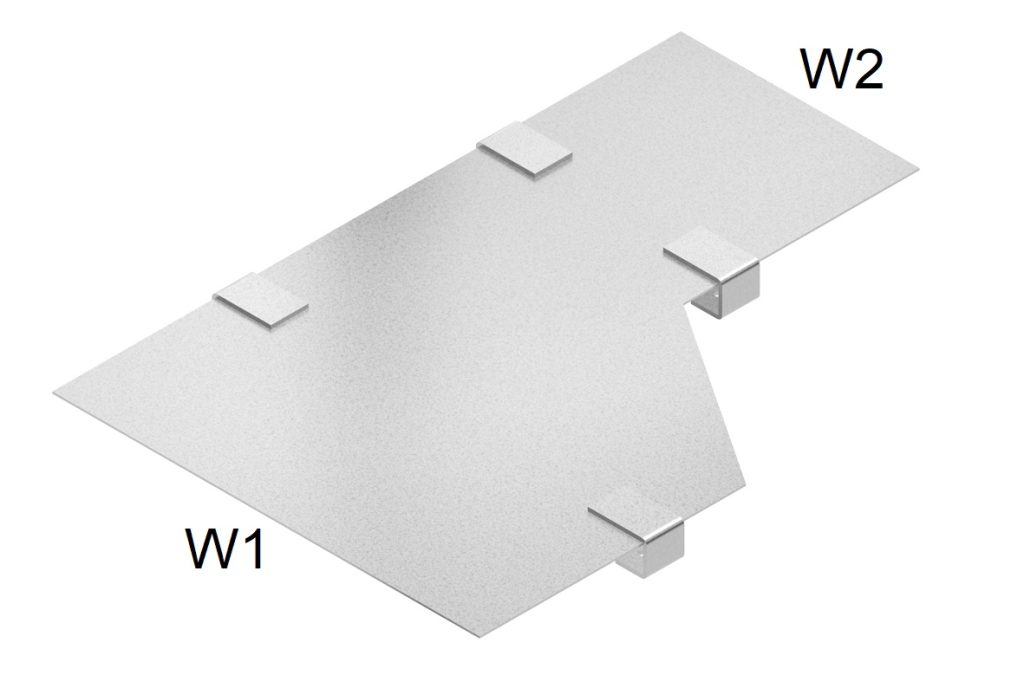

Right Hand Reducer Covers (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
W1W2
300150LRRC/0300/0150PG
450150LRRC/0450/0150PG
600150LRRC/0600/0150PG
750150LRRC/0750/0150PG
900150LRRC/0900/0150PG
450300LRRC/0450/0300PG
600300LRRC/0600/0300PG
750300LRRC/0750/0300PG
900300LRRC/0900/0300PG
600450LRRC/0600/0450PG
750450LRRC/0750/0450PG
900450LRRC/0900/0450PG
750600LRRC/0750/0600PG
900600LRRC/0900/0600PG
900750LRRC/0900/0750PG

External Riser Covers

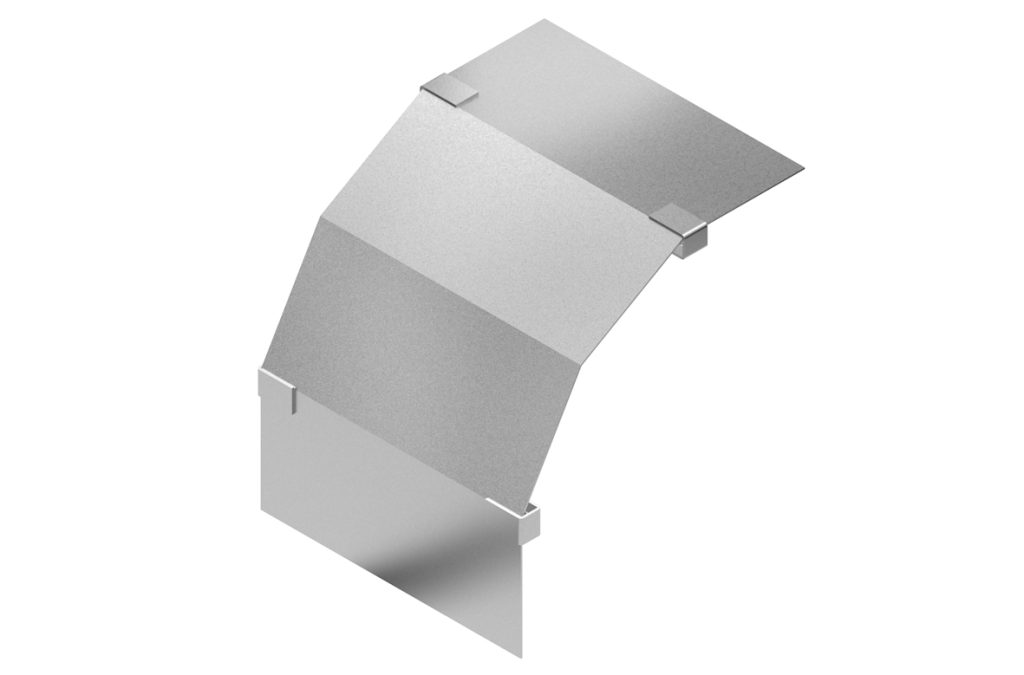

90º External Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mmLight Duty 50mm DeepMedium Duty 100mm DeepHeavy Duty 125mm DeepExtra Heavy Duty 150mm Deep
150LERC050/0150PG/90R300LERC100/0150PG/90R300LERC125/0150PG/90R300LERC150/0150PG/90R300
300LERC050/0300PG/90R300LERC100/0300PG/90R300LERC125/0300PG/90R300LERC150/0300PG/90R300
450LERC050/0450PG/90R300LERC100/0450PG/90R300LERC125/0450PG/90R300LERC150/0450PG/90R300
600N/ALERC100/0600PG/90R300LERC125/0600PG/90R300LERC150/0600PG/90R300
750N/ALERC100/0750PG/90R300LERC125/0750PG/90R300LERC150/0750PG/90R300
900N/ALERC100/0900PG/90R300LERC125/0900PG/90R300LERC150/0900PG/90R300

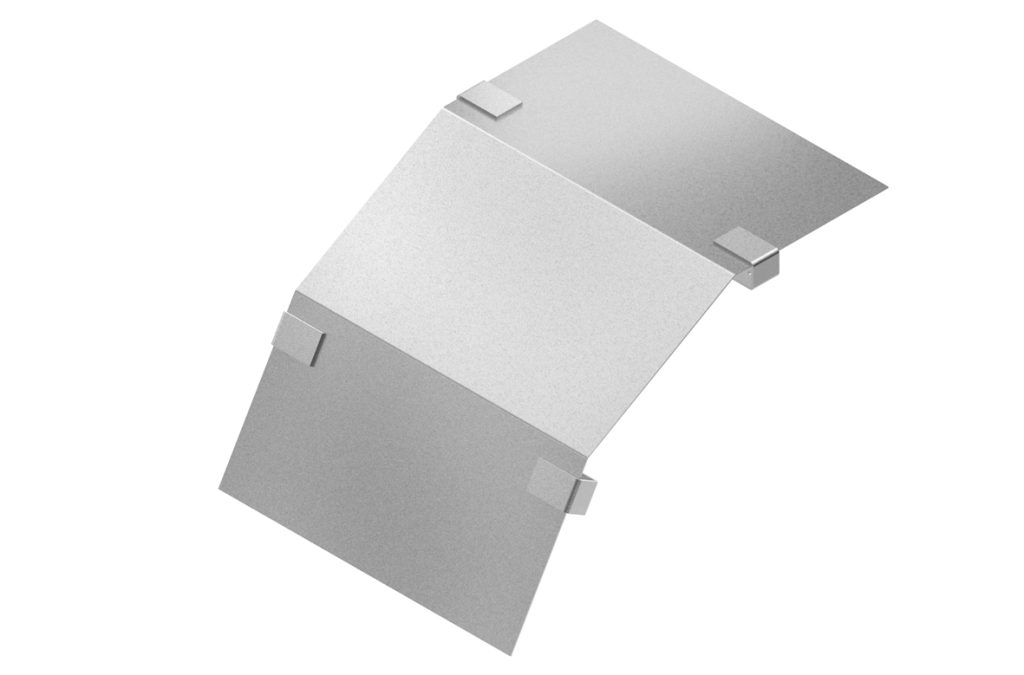

60º External Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mmLight Duty 50mm DeepMedium Duty 100mm DeepHeavy Duty 125mm DeepExtra Heavy Duty 150mm Deep
150LERC050/0150PG/60R300LERC100/0150PG/60R300LERC125/0150PG/60R300LERC150/0150PG/60R300
300LERC050/0300PG/60R300LERC100/0300PG/60R300LERC125/0300PG/60R300LERC150/0300PG/60R300
450LERC050/0450PG/60R300LERC100/0450PG/60R300LERC125/0450PG/60R300LERC150/0450PG/60R300
600N/ALERC100/0600PG/60R300LERC125/0600PG/60R300LERC150/0600PG/60R300
750N/ALERC100/0750PG/60R300LERC125/0750PG/60R300LERC150/0750PG/60R300
900N/ALERC100/0900PG/60R300LERC125/0900PG/60R300LERC150/0900PG/60R300

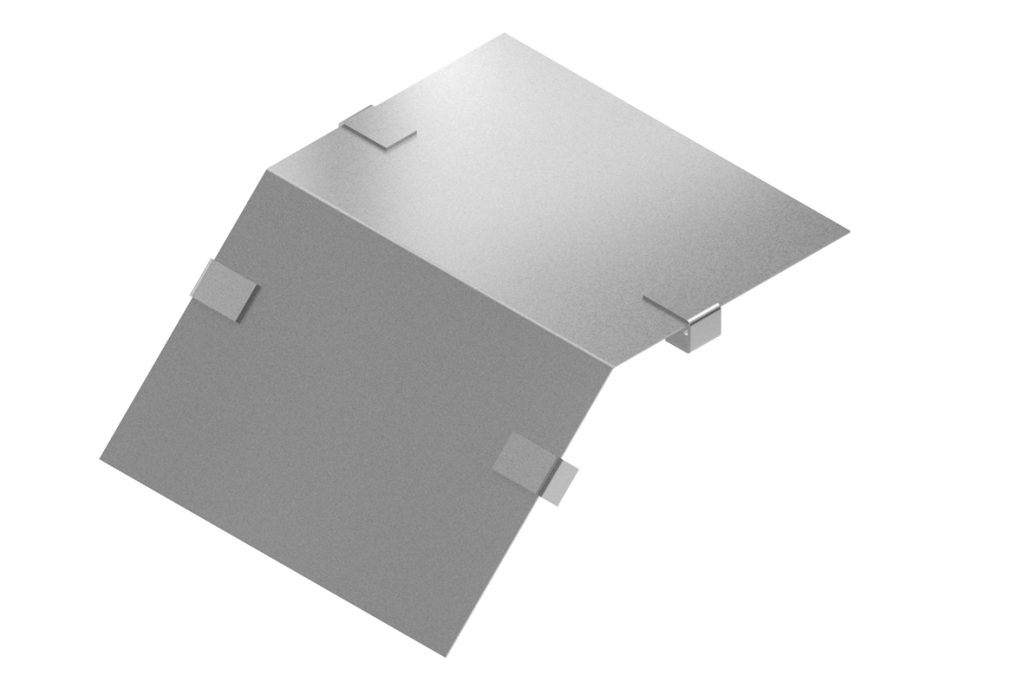

45º External Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mmLight Duty 50mm DeepMedium Duty 100mm DeepHeavy Duty 125mm DeepExtra Heavy Duty 150mm Deep
150LERC050/0150PG/45R300LERC100/0150PG/45R300LERC125/0150PG/45R300LERC150/0150PG/45R300
300LERC050/0300PG/45R300LERC100/0300PG/45R300LERC125/0300PG/45R300LERC150/0300PG/45R300
450LERC050/0450PG/45R300LERC100/0450PG/45R300LERC125/0450PG/45R300LERC150/0450PG/45R300
600N/ALERC100/0600PG/45R300LERC125/0600PG/45R300LERC150/0600PG/45R300
750N/ALERC100/0750PG/45R300LERC125/0750PG/45R300LERC150/0750PG/45R300
900N/ALERC100/0900PG/45R300LERC125/0900PG/45R300LERC150/0900PG/45R300

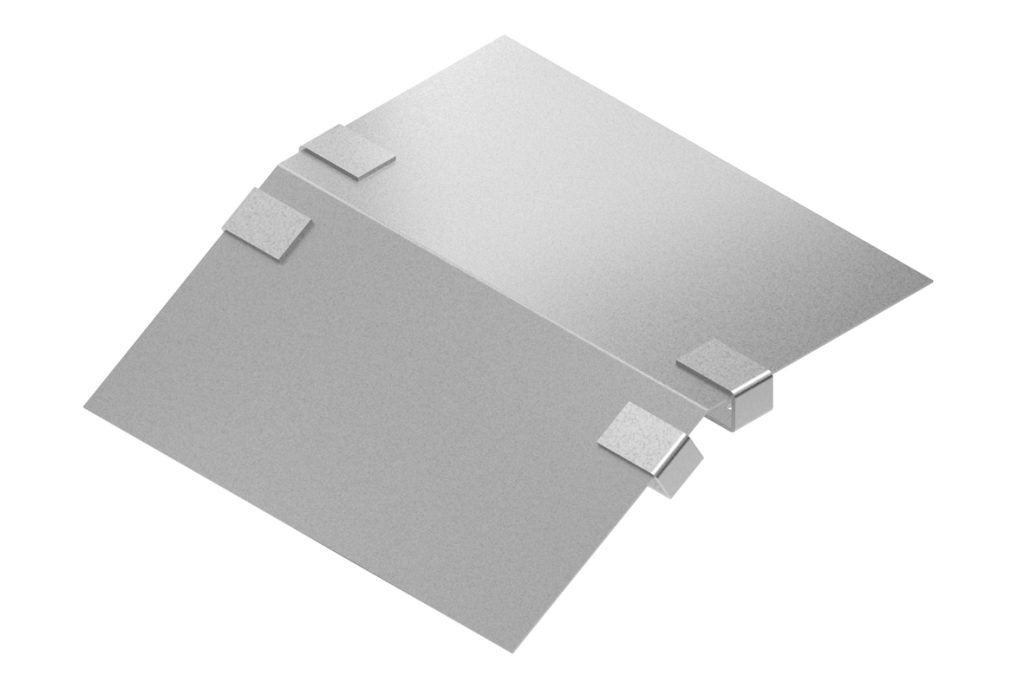

30º External Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (Made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mmLight Duty 50mm DeepMedium Duty 100mm DeepHeavy Duty 125mm DeepExtra Heavy Duty 150mm Deep
150LERC050/0150PG/30R300LERC100/0150PG/30R300LERC125/0150PG/30R300LERC150/0150PG/30R300
300LERC050/0300PG/30R300LERC100/0300PG/30R300LERC125/0300PG/30R300LERC150/0300PG/30R300
450LERC050/0450PG/30R300LERC100/0450PG/30R300LERC125/0450PG/30R300LERC150/0450PG/30R300
600N/ALERC100/0600PG/30R300LERC125/0600PG/30R300LERC150/0600PG/30R300
750N/ALERC100/0750PG/30R300LERC125/0750PG/30R300LERC150/0750PG/30R300
900N/ALERC100/0900PG/30R300LERC125/0900PG/30R300LERC150/0900PG/30R300

Internal Riser Covers

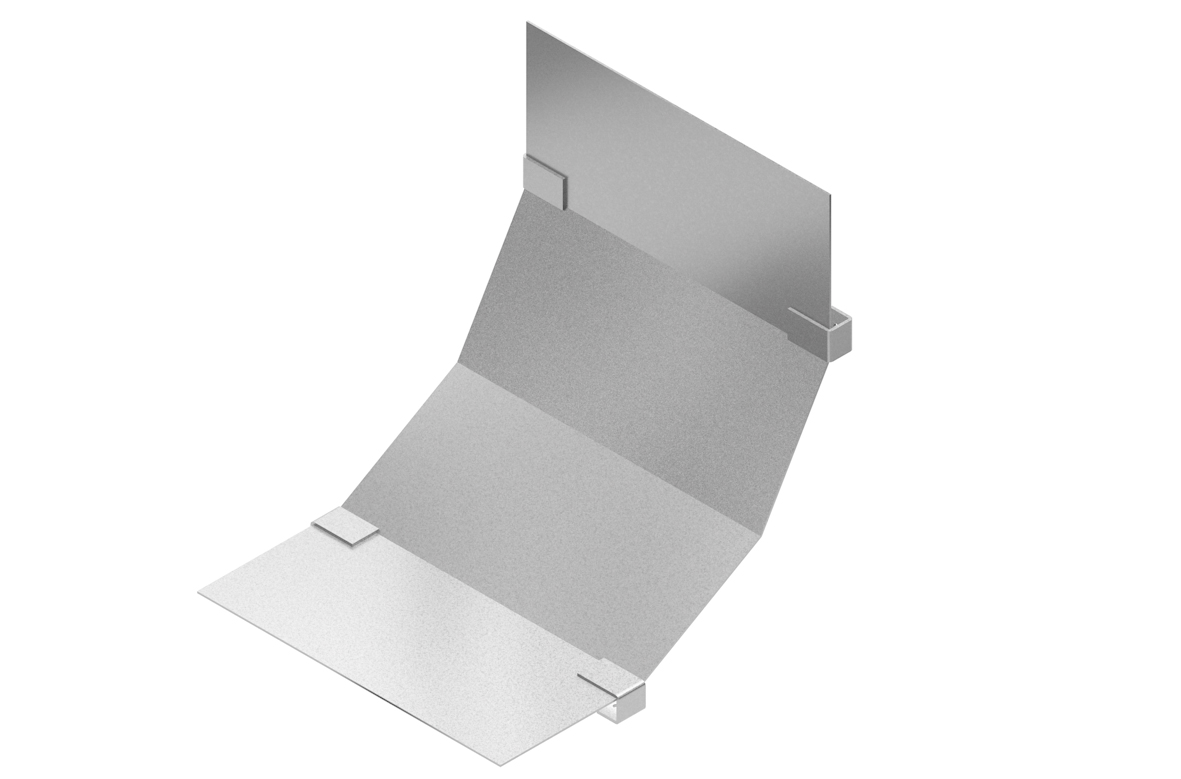

90º Internal Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LIRC/0150PG/90R300
300LIRC/0300PG/90R300
450LIRC/0450PG/90R300
600LIRC/0600PG/90R300
750LIRC/0750PG/90R300
900LIRC/0900PG/90R300

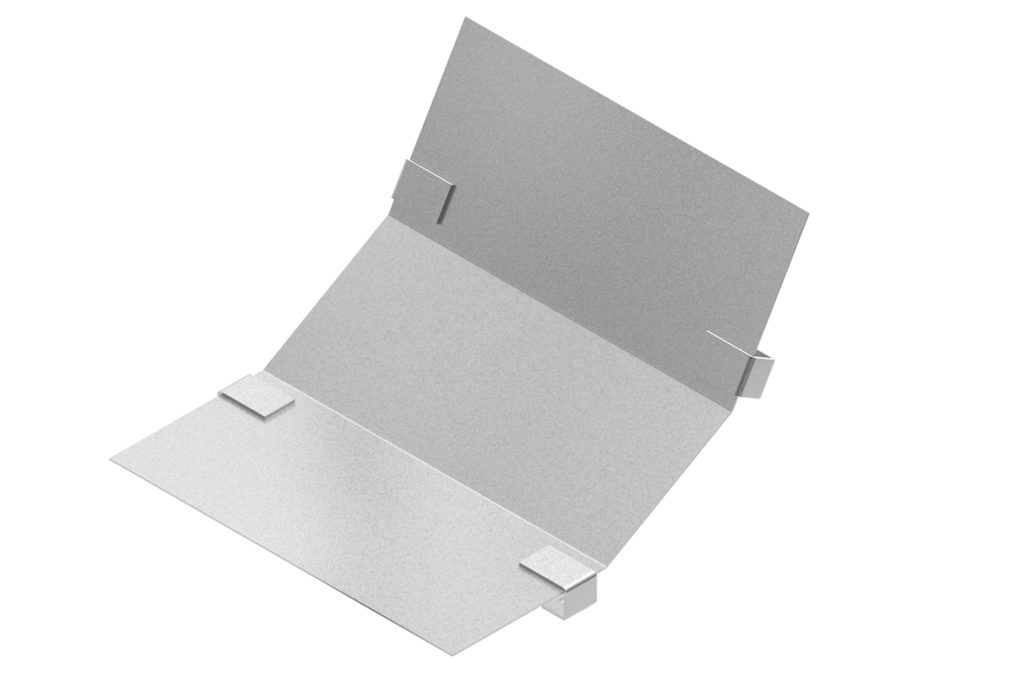

60º Internal Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LIRC/0150PG/60R300
300LIRC/0300PG/60R300
450LIRC/0450PG/60R300
600LIRC/0600PG/60R300
750LIRC/0750PG/60R300
900LIRC/0900PG/60R300

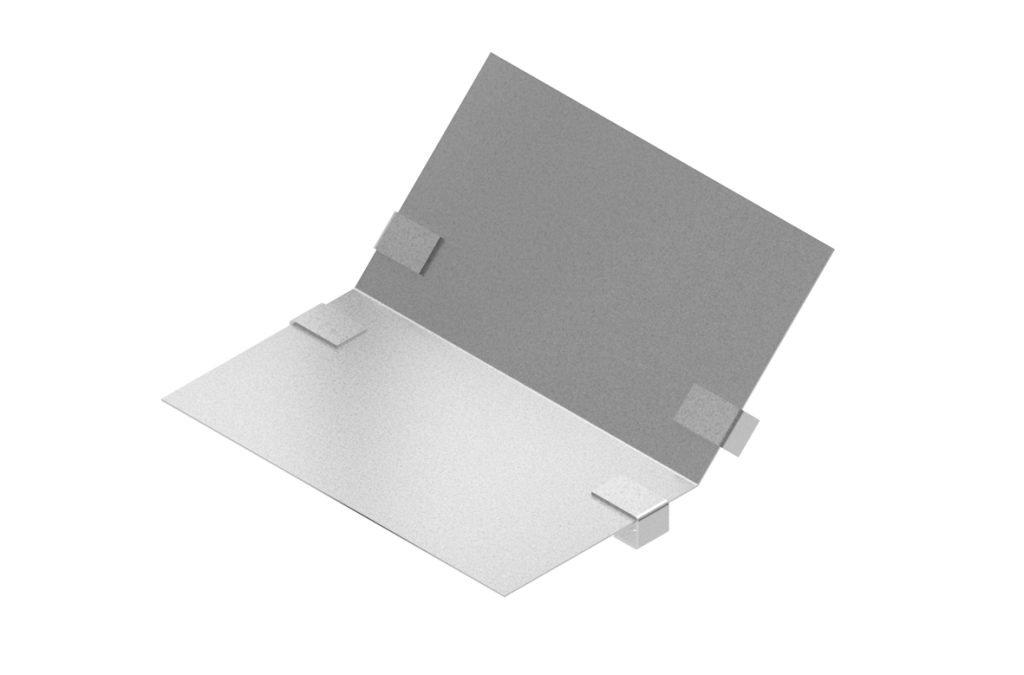

45º Internal Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LIRC/0150PG/45R300
300LIRC/0300PG/45R300
450LIRC/0450PG/45R300
600LIRC/0600PG/45R300
750LIRC/0750PG/45R300
900LIRC/0900PG/45R300

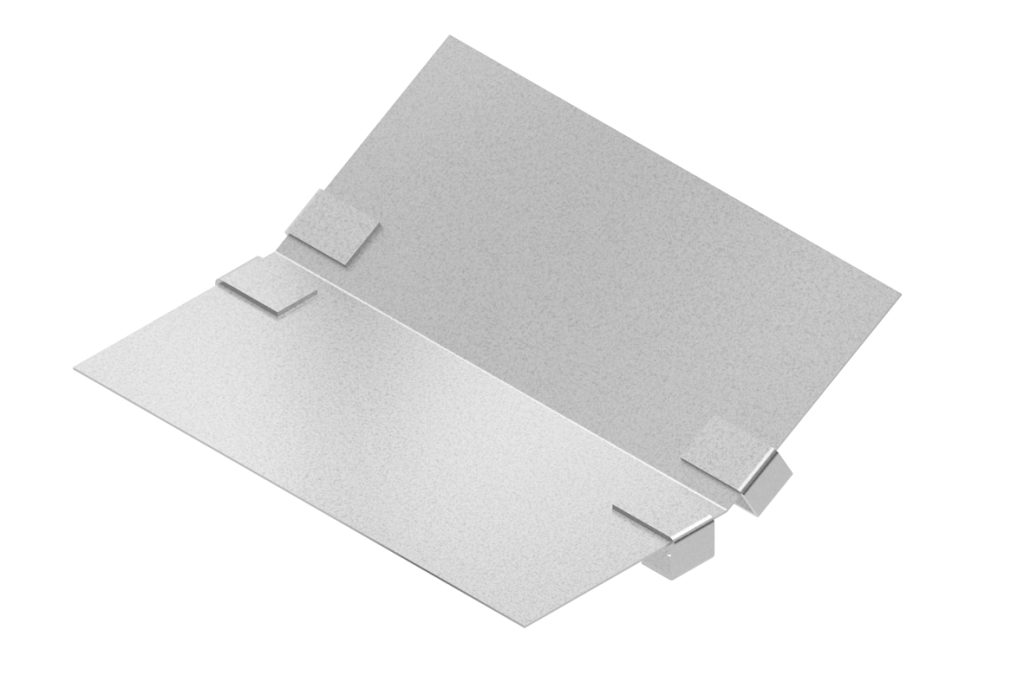

30º Internal Riser Covers (made to order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order)

Finish: pre-galvanised = PG

Standard closed covers = C, ventilated cover = CV

Includes fixing clamps and fasteners

Width mm
150LIRC/0150PG/30R300
300LIRC/0300PG/30R300
450LIRC/0450PG/30R300
600LIRC/0600PG/30R300
750LIRC/0750PG/30R300
900LIRC/0900PG/30R300
