60 Degree external riser (made to order) Cable Ladder

Risers

Internal and external risers for voestalpine Metsec cable ladders are available with 90° rotation and 300mm radius as standard with 30°, 45° and 60° variations and 450mm, 600mm, 750mm and 900mm radii produced to order. A flexible articulated riser is also available and is made to order.

Risers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.

Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.

Materials and finishes available are pre-galvanised steel grade S280 with a 275g/m² zinc coating.

Closed and ventilated covers are available for all risers.

90º External Riser

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LER050/0150HDG/90R300LER100/0150HDG/90R300LER125/0150HDG/90R300LER150/0150HDG/90R300
300LER050/0300HDG/90R300LER100/0300HDG/90R300LER125/0300HDG/90R300LER150/0300HDG/90R300
400LER050/0450HDG/90R300LER100/0450HDG/90R300LER125/0450HDG/90R300LER150/0450HDG/90R300
600N/ALER100/0600HDG/90R300LER125/0600HDG/90R300LER150/0600HDG/90R300
750N/A LER100/0750HDG/90R300LER125/0750HDG/90R300LER150/0750HDG/90R300
900N/A LER100/0900HDG/90R300LER125/0900HDG/90R300LER150/0900HDG/90R300

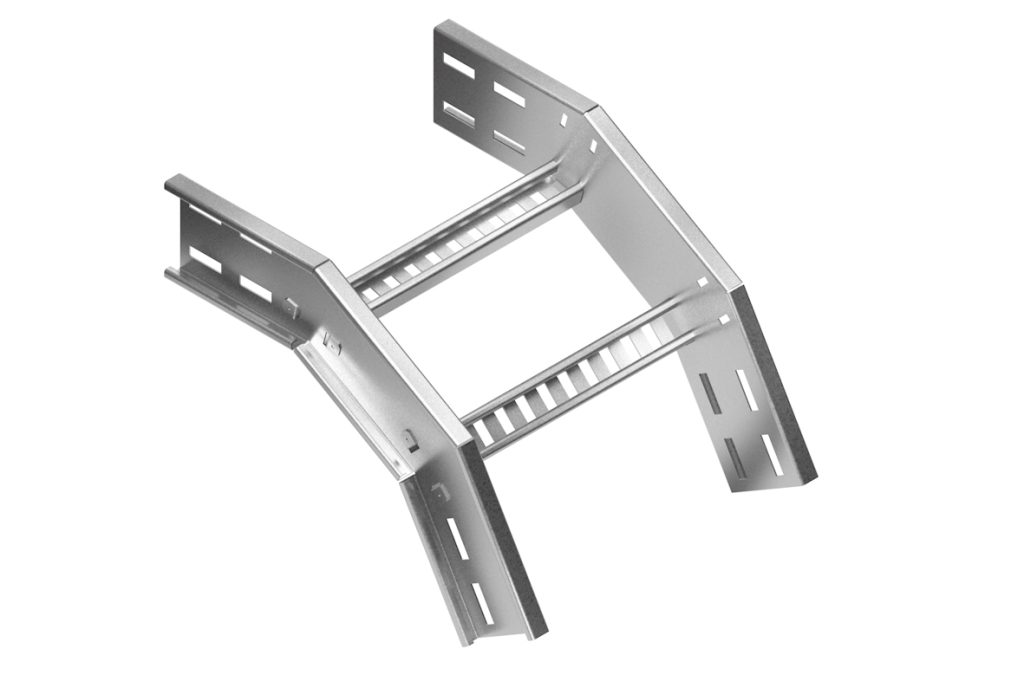

60º External Riser (Made to Order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LER050/0150HDG/60R300LER100/0150HDG/60R300LER125/0150HDG/60R300LER150/0150HDG/60R300
300LER050/0300HDG/60R300LER100/0300HDG/60R300LER125/0300HDG/60R300LER150/0300HDG/60R300
400LER050/0450HDG/60R300LER100/0450HDG/60R300LER125/0450HDG/60R300LER150/0450HDG/60R300
600N/ALER100/0600HDG/60R300LER125/0600HDG/60R300LER150/0600HDG/60R300
750N/A LER100/0750HDG/60R300LER125/0750HDG/60R300LER150/0750HDG/60R300
900N/A LER100/0900HDG/60R300LER125/0900HDG/60R300LER150/0900HDG/60R300

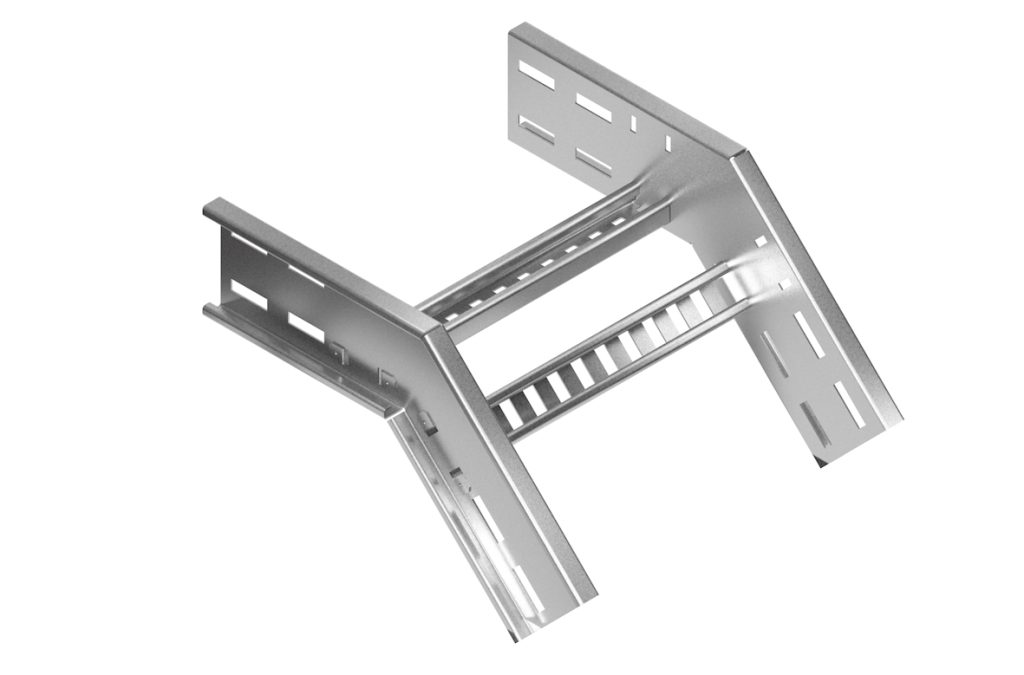

45º External Riser (Made to Order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LER050/0150HDG/45R300LER100/0150HDG/45R300LER125/0150HDG/45R300LER150/0150HDG/45R300
300LER050/0300HDG/45R300LER100/0300HDG/45R300LER125/0300HDG/45R300LER150/0300HDG/45R300
400LER050/0450HDG/45R300LER100/0450HDG/45R300LER125/0450HDG/45R300LER150/0450HDG/45R300
600N/ALER100/0600HDG/45R300LER125/0600HDG/45R300LER150/0600HDG/45R300
750N/A LER100/0750HDG/45R300LER125/0750HDG/45R300LER150/0750HDG/45R300
900N/A LER100/0900HDG/45R300LER125/0900HDG/45R300LER150/0900HDG/45R300

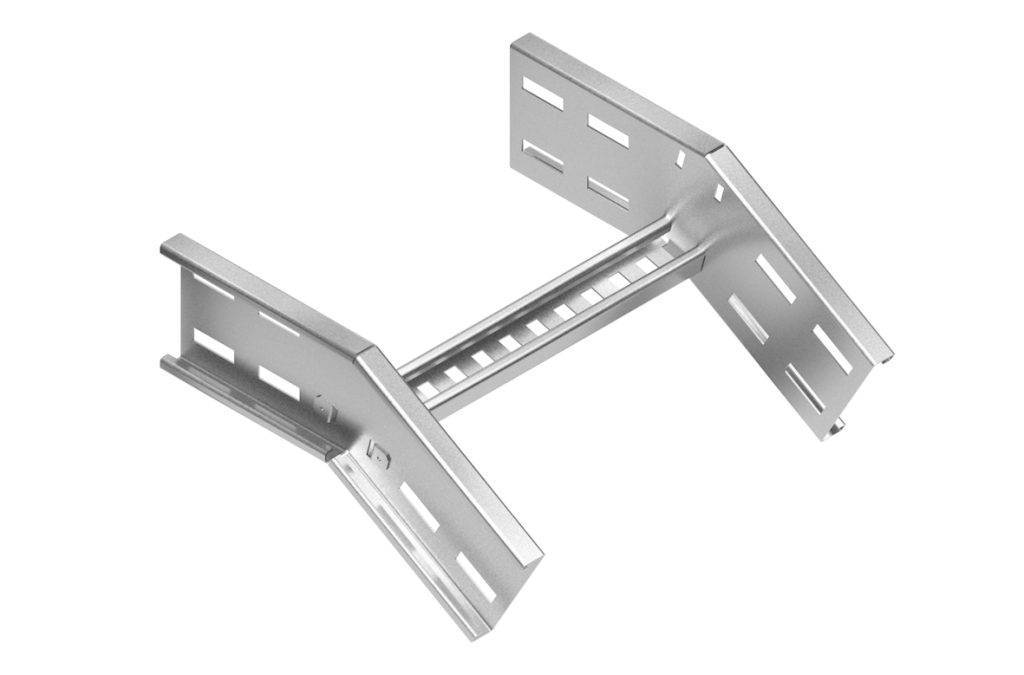

30º External Riser (Made to Order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LER050/0150HDG/30R300LER100/0150HDG/30R300LER125/0150HDG/30R300LER150/0150HDG/30R300
300LER050/0300HDG/30R300LER100/0300HDG/30R300LER125/0300HDG/30R300LER150/0300HDG/30R300
400LER050/0450HDG/30R300LER100/0450HDG/30R300LER125/0450HDG/30R300LER150/0450HDG/30R300
600N/ALER100/0600HDG/30R300LER125/0600HDG/30R300LER150/0600HDG/30R300
750N/A LER100/0750HDG/30R300LER125/0750HDG/30R300LER150/0750HDG/30R300
900N/A LER100/0900HDG/30R300LER125/0900HDG/30R300LER150/0900HDG/30R300

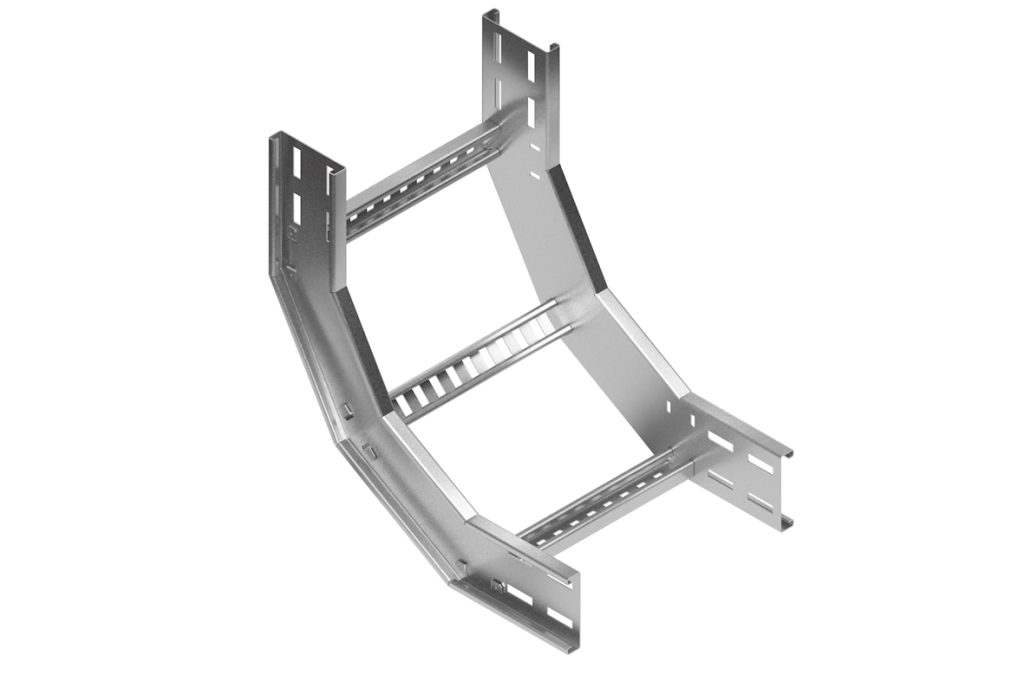

90º Internal Riser

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LIR050/0150HDG/90R300LIR100/0150HDG/90R300LIR125/0150HDG/90R300LIR150/0150HDG/90R300
300LIR050/0300HDG/90R300LIR100/0300HDG/90R300LIR125/0300HDG/90R300LIR150/0300HDG/90R300
400LIR050/0450HDG/90R300LIR100/0450HDG/90R300LIR125/0450HDG/90R300LIR150/0450HDG/90R300
600N/ALIR100/0600HDG/90R300LIR125/0600HDG/90R300LIR150/0600HDG/90R300
750N/A LIR100/0750HDG/90R300LIR125/0750HDG/90R300LIR150/0750HDG/90R300
900N/A LIR100/0900HDG/90R300LIR125/0900HDG/90R300LIR150/0900HDG/90R300

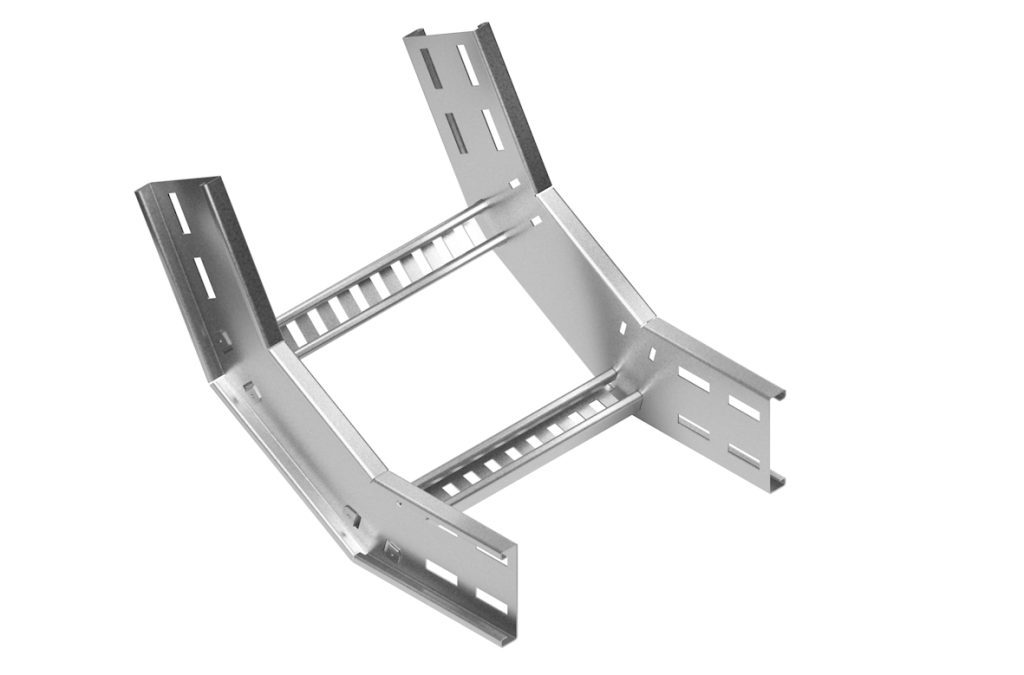

60º Internal Riser (Made to Order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LIR050/0150HDG/60R300LIR100/0150HDG/60R300LIR125/0150HDG/60R300LIR150/0150HDG/60R300
300LIR050/0300HDG/60R300LIR100/0300HDG/60R300LIR125/0300HDG/60R300LIR150/0300HDG/60R300
400LIR050/0450HDG/60R300LIR100/0450HDG/60R300LIR125/0450HDG/60R300LIR150/0450HDG/60R300
600N/ALIR100/0600HDG/60R300LIR125/0600HDG/60R300LIR150/0600HDG/60R300
750N/A LIR100/0750HDG/60R300LIR125/0750HDG/60R300LIR150/0750HDG/60R300
900N/A LIR100/0900HDG/60R300LIR125/0900HDG/60R300LIR150/0900HDG/60R300

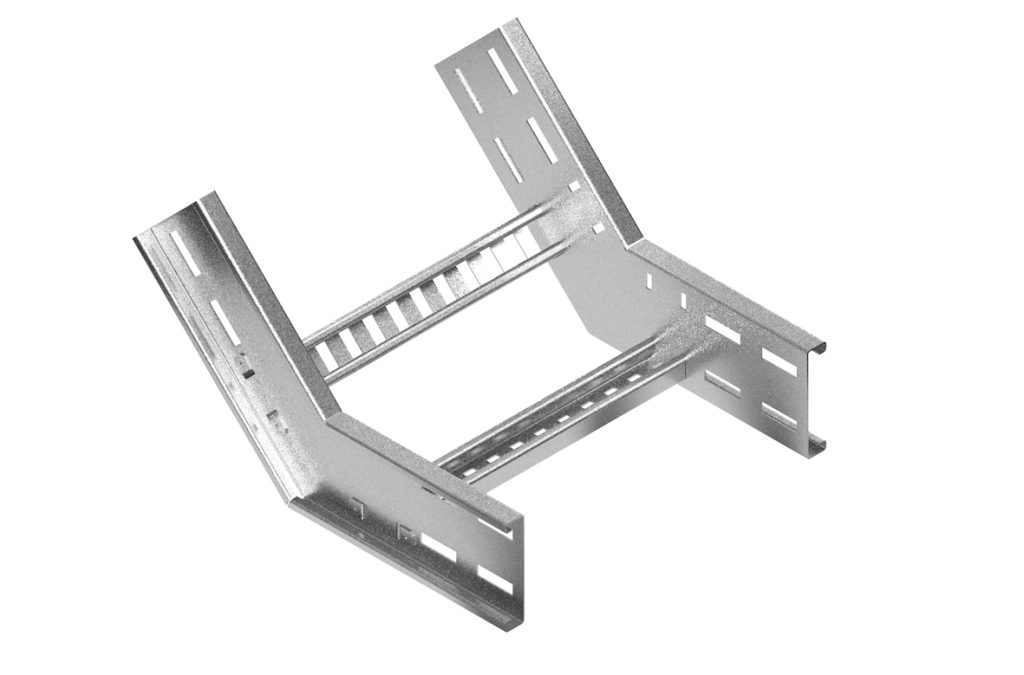

45º Internal Riser (Made to Order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LIR050/0150HDG/45R300LIR100/0150HDG/45R300LIR125/0150HDG/45R300LIR150/0150HDG/45R300
300LIR050/0300HDG/45R300LIR100/0300HDG/45R300LIR125/0300HDG/45R300LIR150/0300HDG/45R300
400LIR050/0450HDG/45R300LIR100/0450HDG/45R300LIR125/0450HDG/45R300LIR150/0450HDG/45R300
600N/ALIR100/0600HDG/45R300LIR125/0600HDG/45R300LIR150/0600HDG/45R300
750N/A LIR100/0750HDG/45R300LIR125/0750HDG/45R300LIR150/0750HDG/45R300
900N/A LIR100/0900HDG/45R300LIR125/0900HDG/45R300LIR150/0900HDG/45R300

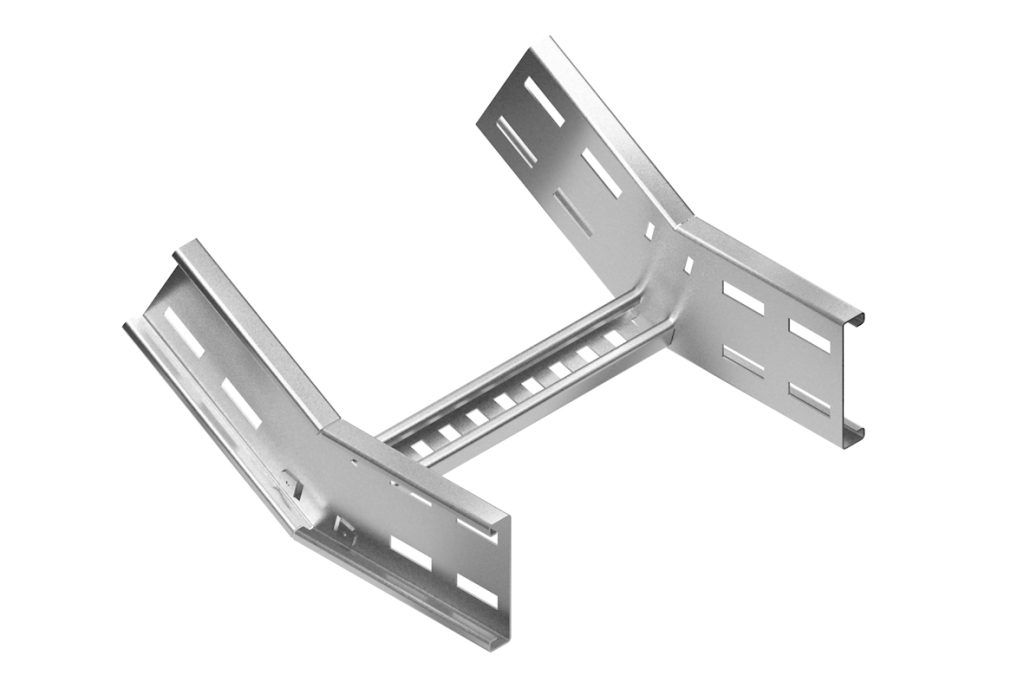

30º Internal Riser (Made to Order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150LIR050/0150HDG/30R300LIR100/0150HDG/30R300LIR125/0150HDG/30R300LIR150/0150HDG/30R300
300LIR050/0300HDG/30R300LIR100/0300HDG/30R300LIR125/0300HDG/30R300LIR150/0300HDG/30R300
400LIR050/0450HDG/30R300LIR100/0450HDG/30R300LIR125/0450HDG/30R300LIR150/0450HDG/30R300
600N/ALIR100/0600HDG/30R300LIR125/0600HDG/30R300LIR150/0600HDG/30R300
750N/A LIR100/0750HDG/30R300LIR125/0750HDG/30R300LIR150/0750HDG/30R300
900N/A LIR100/0900HDG/30R300LIR125/0900HDG/30R300LIR150/0900HDG/30R300

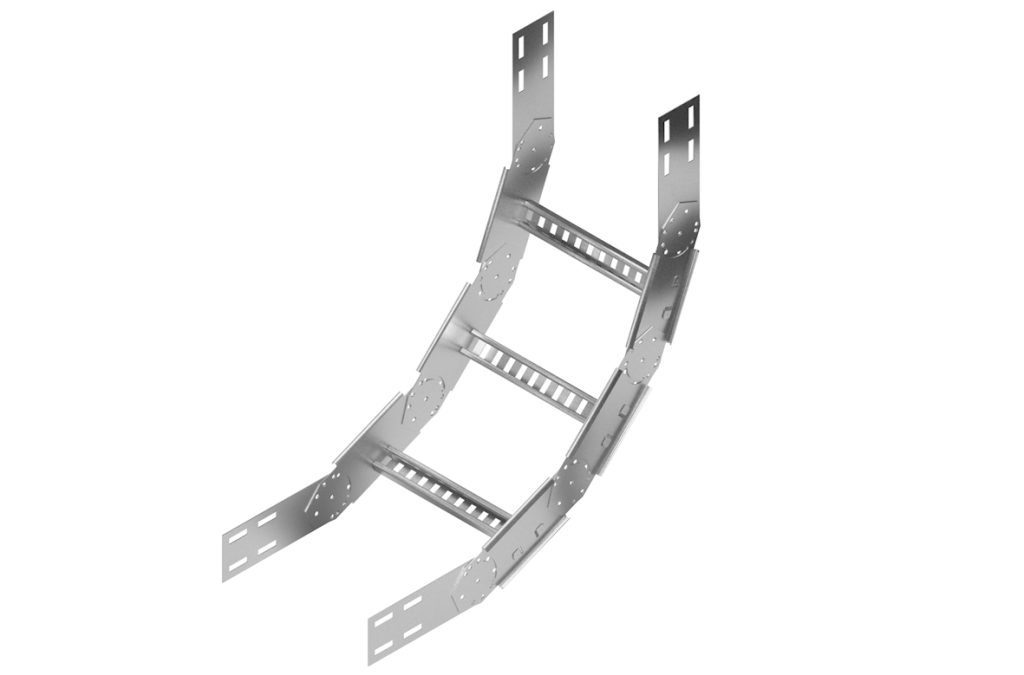

Articulated Riser (Made to Order)

Finish: pre-galvanised = PG

Width
mm		Light Duty
50mm Deep		Medium Duty
100mm Deep		Heavy Duty
125mm Deep		Extra Heavy Duty
150mm Deep
150N/AL/AR100/0150PGL/AR125/0150PGL/AR150/0150PG
300N/AL/AR100/0300PGL/AR125/0300PGL/AR150/0300PG
450N/AL/AR100/0450PGL/AR125/0450PGL/AR150/0450PG
600N/AL/AR100/0600PGL/AR125/0600PGL/AR150/0600PG
750N/A L/AR100/0750PGL/AR125/0750PGL/AR150/0750PG
900N/A L/AR100/0900PGL/AR125/0900PGL/AR150/0900PG
