Straight Lengths

Metsec cable ladders are available in 3m lengths as standard and 6m lengths to order. Standard widths are 150mm, 300mm, 450mm, 600mm, 750mm and 900mm with alternative widths available, to order, to meet the requirements of the European markets.

The complete system is produced, as standard, from pre-galvanised steel grade S280 with a 275g/m² zinc coating in 4 depths; 50mm, 100mm, 125mm and 150mm.

Rungs are 41mm x 21mm channel on all depths of ladder and are alternately reversed as standard with other rung orientations produced to order.

Ladder side rails feature 11mm x 38mm slots at 60mm centres allowing easy connection to each other also allows site cut ladders to be connected generally without the need to drill.

Closed and ventilated covers are available in 1.5m lengths.

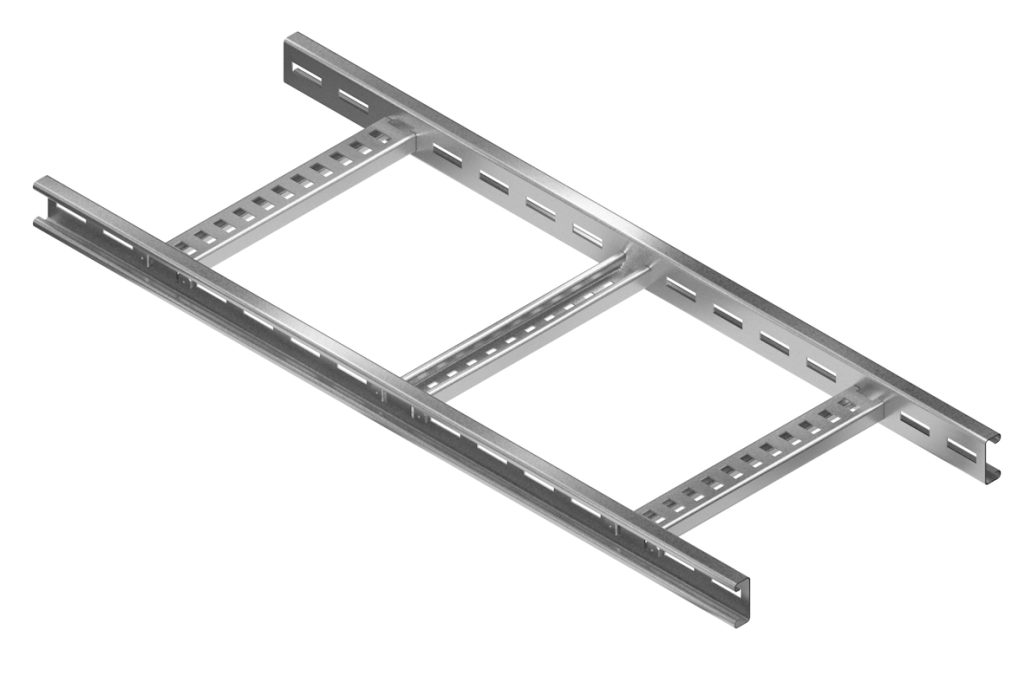

Light Duty – 50mm Deep

Finish: pre-galvanised = PG

Width mm	3m Long	6m Long
150	LSL050/0150/PG/3	N/A
300	LSL050/0300/PG/3	N/A
450	LSL050/0450/PG/3	N/A

Medium Duty – 100mm Deep

Finish: pre-galvanised = PG

Width mm	3m Long	6m long
150	LSL100/0150/PG/3	LSL100/0150/PG/6
300	LSL100/0300/PG/3	LSL100/0300/PG/6
450	LSL100/0450/PG/3	LSL100/0450/PG/6
600	LSL100/0600/PG/3	LSL100/0600/PG/6
750	LSL100/0750/PG/3	LSL100/0750/PG/6
900	LSL100/0900/PG/3	LSL100/0900/PG/6

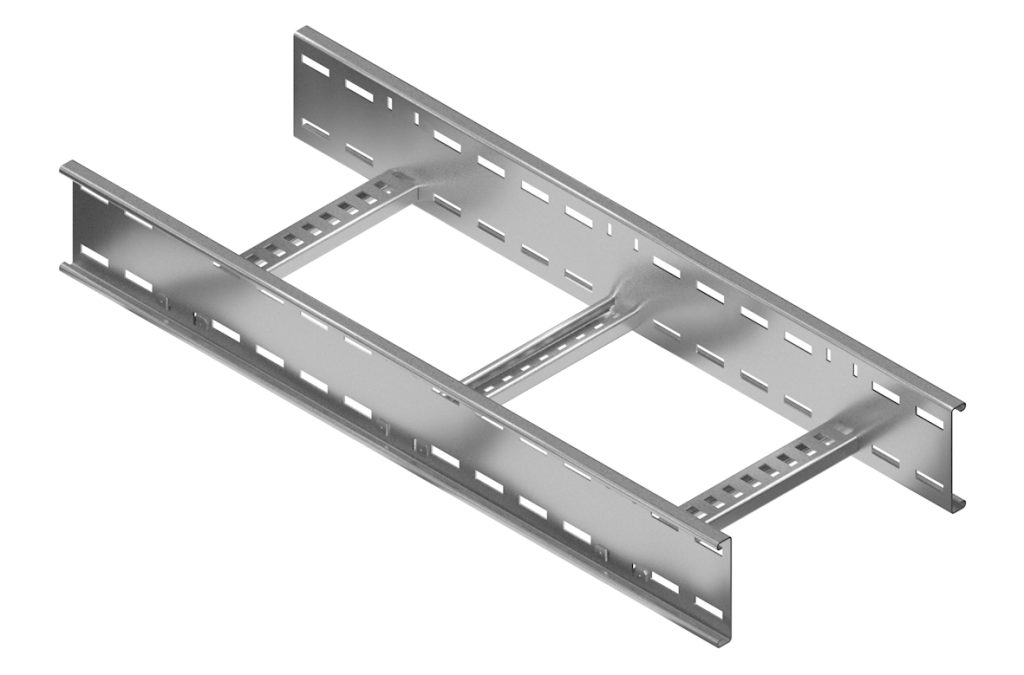

Heavy Duty – 125mm Deep

Finish: pre-galvanised = PG

Width mm	3m Long	6m Long
150	LSL125/0150/PG/3	LSL150/0150/PG/6
300	LSL125/0300/PG/3	LSL150/0300/PG/6
450	LSL125/0450/PG/3	LSL150/0450/PG/6
600	LSL125/0600/PG/3	LSL150/0600/PG/6
750	LSL125/0750/PG/3	LSL150/0750/PG/6
900	LSL125/0900/PG/3	N/A

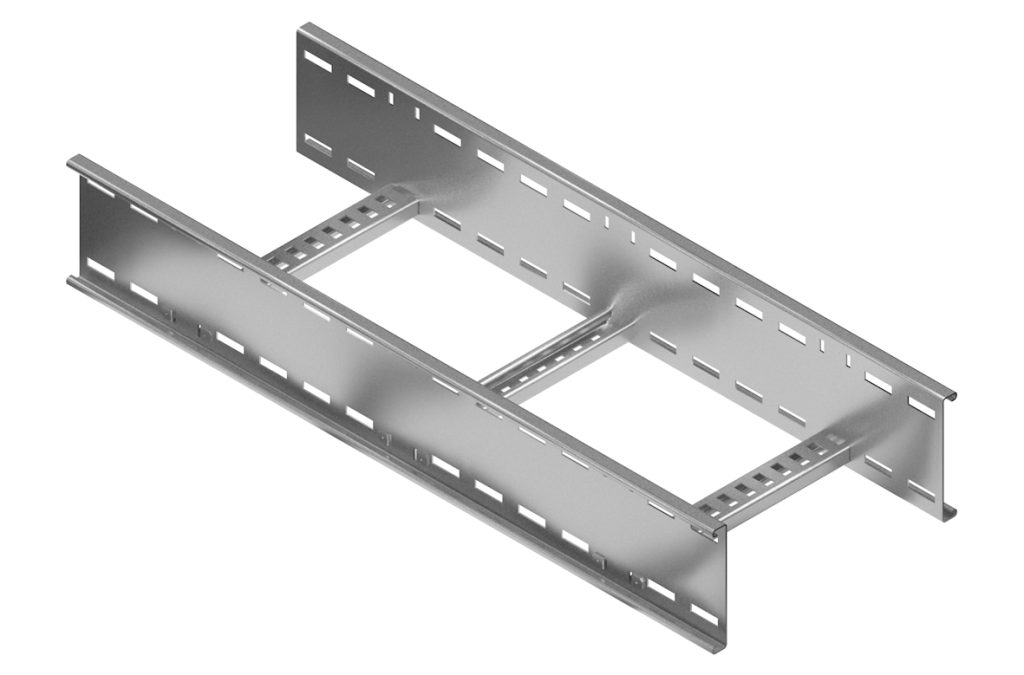

Extra Heavy Duty – 150mm Deep

Finish: pre-galvanised = PG

Width mm	3m Long	6m Long
150	LSL150/0150/PG/3	LSL150/0150/PG/6
300	LSL150/0300/PG/3	LSL150/0300/PG/6
450	LSL150/0450/PG/3	LSL150/0450/PG/6
600	LSL150/0600/PG/3	LSL150/0600/PG/6
750	LSL150/0750/PG/3	LSL150/0750/PG/6
900	LSL150/0900/PG/3	LSL150/0900/PG/6
