Tees & Crossovers

Tees and crossovers are available in widths of 150mm, 300mm, 450mm, 600mm, 750mm and 900mm as standard with alternative widths and unequal tees made to order. The standard radius is 300mm with 450mm, 600mm, 750mm and 900mm radii produced to order.

Tees and crossovers are manufactured in 50mm, 100mm, 125mm and 150mm depths, each with the same footprint to aid setting out when final loadings are not yet available.

Materials and finishes available are pre-galvanised steel grade S280 with a 275g/m² zinc coating.

Closed and ventilated covers are available for all tees and crossovers.

Equal Tee

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width mm	Light Duty 50mm Deep	Medium Duty 100mm Deep	Heavy Duty 125mm Deep	Extra Heavy Duty 150mm Deep
150	LET050/0150PGR300	LET100/0150PGR300	LET125/0150PGR300	LET150/0150PGR300
300	LET050/0300PGR300	LET100/0300PGR300	LET125/0300PGR300	LET150/0300PGR300
450	LET050/0450PGR300	LET100/0450PGR300	LET125/0450PGR300	LET150/0450PGR300
600	N/A	LET100/0600PGR300	LET125/0600PGR300	LET150/0600PGR300
750	N/A	LET100/0750PGR300	LET125/0750PGR300	LET150/0750PGR300
900	N/A	LET100/0900PGR300	LET125/0900PGR300	LET150/0900PGR300

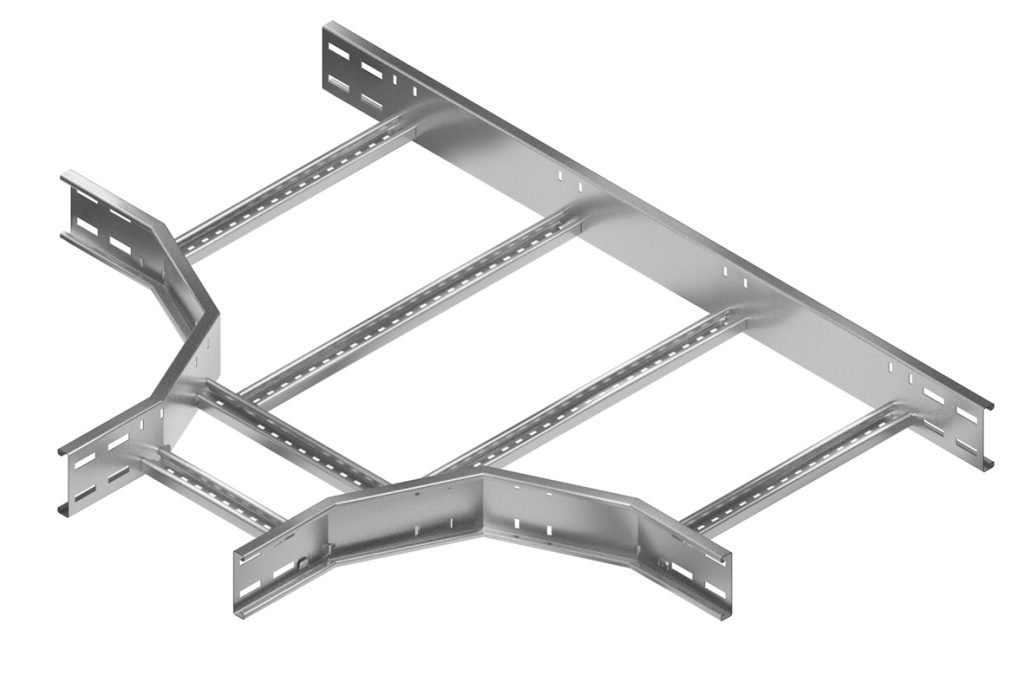

Unequal Tee (Made to Order)

Standard radius 300mm = R300, other radii R450, R600, R750 and R900.

Finish: pre-galvanised = PG

How to generate the part number – LUT (depth)/W1/W2(finish)(radius)

Example – LUT100/300/150/PGR300

Table below shows a complete list of W1 and W2 combinations.

W1	W2
150	300, 450, 600, 750, 900
300	150, 450, 600, 750, 900
450	150, 300, 600, 750, 900
600	150, 300, 450, 750, 900
750	150, 300, 450, 600, 900
900	150, 300, 450, 600, 750

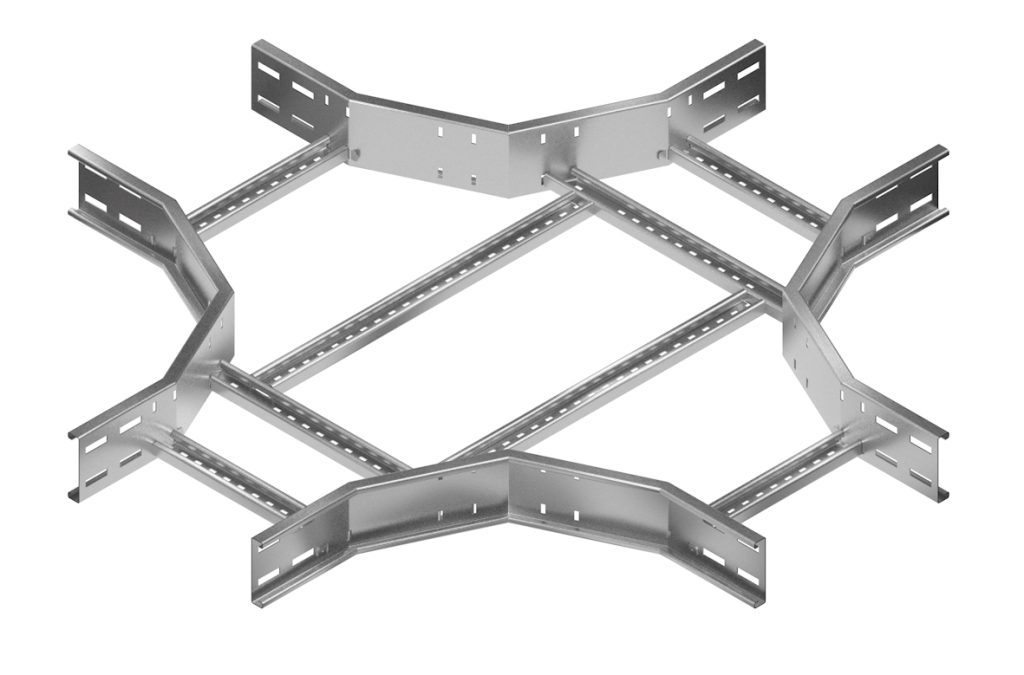

Crossover

Standard radius 300mm = R300, other radii R450, R600, R750 and R900 (made to order).

Finish: pre-galvanised = PG

Width mm	Light Duty 50mm Deep	Medium Duty 100mm Deep	Heavy Duty 125mm Deep	Extra Heavy Duty 150mm Deep
150	LCO050/0150PGR300	LCO100/0150PGR300	LCO125/0150PGR300	LCO150/0150PGR300
300	LCO050/0300PGR300	LCO100/0300PGR300	LCO125/0300PGR300	LCO150/0300PGR300
450	LCO050/0450PGR300	LCO100/0450PGR300	LCO125/0450PGR300	LCO150/0450PGR300
600	N/A	LCO100/0600PGR300	LCO125/0600PGR300	LCO150/0600PGR300
750	N/A	LCO100/0750PGR300	LCO125/0750PGR300	LCO150/0750PGR300
900	N/A	LCO100/0900PGR300	LCO125/0900PGR300	LCO150/0900PGR300
