Product Footprints

Cable tray — accessory foot print Standard radius is 125mm

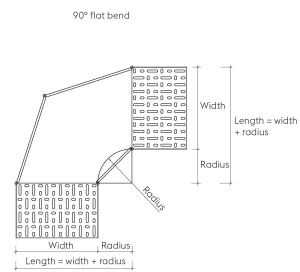

90° Flat Bend

90 Degree Flat Bend Cable Tray

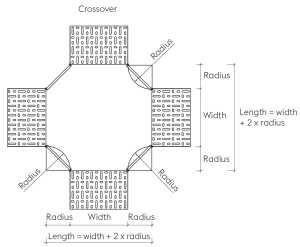

Crossover

Crossover Cable Tray

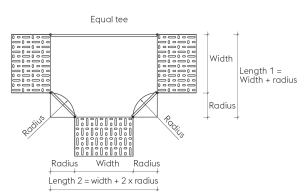

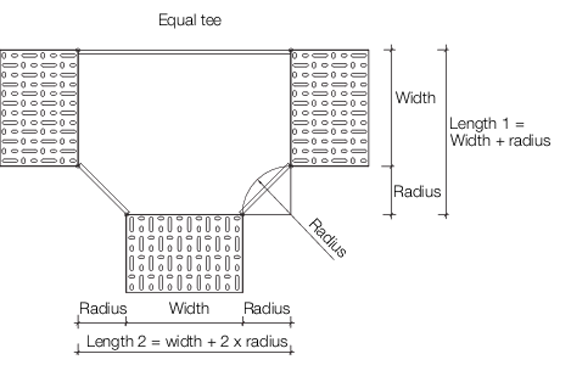

Equal Tee

Equal Tee Cable Tray

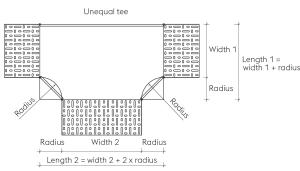

Unequal Tee

Unequal Tee Cable Tray

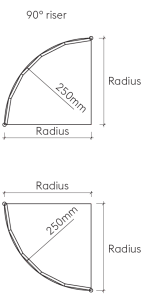

90° Riser

90 Degree Riser Cable Tray

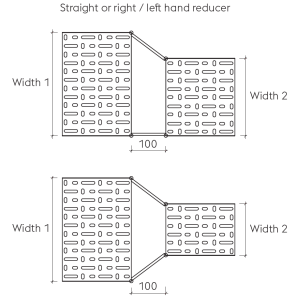

Reducers

Straight or right left hand reducer

Straight or Right/Left Hand Reducers

Footprints are identical for all ranges
