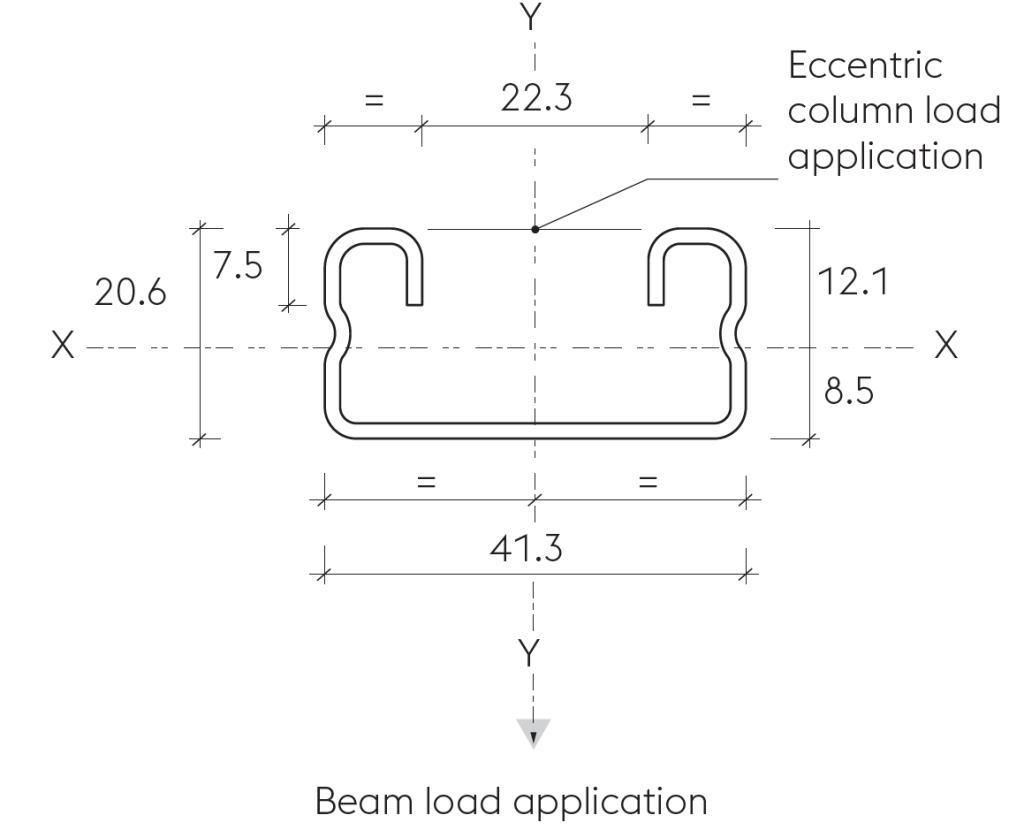

MS2115

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Loads not applicable to stainless steel, loads for stainless steel available upon request.

6mtr channel is a stock length to be cut down to suit.

Area cm²	Wt kg/m	Ixx cm⁴	Zxx (top) cm³	Zxx (btm) cm³	rxx cm	Iyy cm⁴	Zyy cm³	ryy cm
1.52	1.20	0.89	0.75	1.03	0.77	3.68	1.78	1.55

Le (m)	Safe Working Loads in kg Uniform		Def. Limit Span/ 200	Def. Limit Span/ 360	Safe Working Loads in kg Concentrated		Def. Limit Span/ 200	Def. Limit Span/ 360	Safe Column Loads kg at Centroid	Safe Column Loads kg at Face.
Le (m)	Load (kg)	Def. (mm)	Def. Limit Span/ 200	Def. Limit Span/ 360	Load (kg)	Def. (mm)	Def. Limit Span/ 200	Def. Limit Span/ 360	Safe Column Loads kg at Centroid	Safe Column Loads kg at Face.
0.6	179	2.69	179	111	89	2.15	89	69	2051	663
0.7	153	3.66	147	81	77	2.93	77	51	1748	612
0.8	134	4.78	112	62	67	3.83	67	39	1453	558
1.5	119	6.05	89	49	60	4.84	55	31	1203	506
1.0	107	7.46	72	40	54	5.98	45	25	1004	459
1.1	97	9.03	59	33	49	7.23	37	21	847	416
1.2	89	10.75	50	28	45	8.60	31	17	722	378
1.3	82	12.62	42	24	41	10.09	27	15	622	344
1.4	77	14.63	37	20	38	11.70	23	13	Le ÷ rxx > 180
1.5	71	16.80	32	18	36	13.44	20	11
1.6	67	19.11	28	16	33	15.28	18	10
1.7	63	21.57	25	14	32	17.25	16	9
1.8	60	24.19	22	12	30	19.35	14	8
1.9	56	26.95	20	11	28	21.56	12	7
2.0	54	29.86	18	10	27	23.88	11	6
2.1	51	32.92	16	9	26	26.34	10	6
2.2	49	26.13	15	8	24	28.90	9	5
2.3	47	39.49	14	8	23	31.59	8	5
2.4	45	43.00	12	7	22	34.39	8	4
2.5	43	46.66	11	6	21	37.32	7	4
2.6	41	50.46	11	6	21	40.37	7	4
2.7	40	54.42	10	5	20	43.53	6	3
2.8	38	58.52	9	5	19	46.82	6	3
2.9	37	62.78	9	5	18	50.23	5	3
3.0	36	67.18	8	4	18	53.76	5	3
