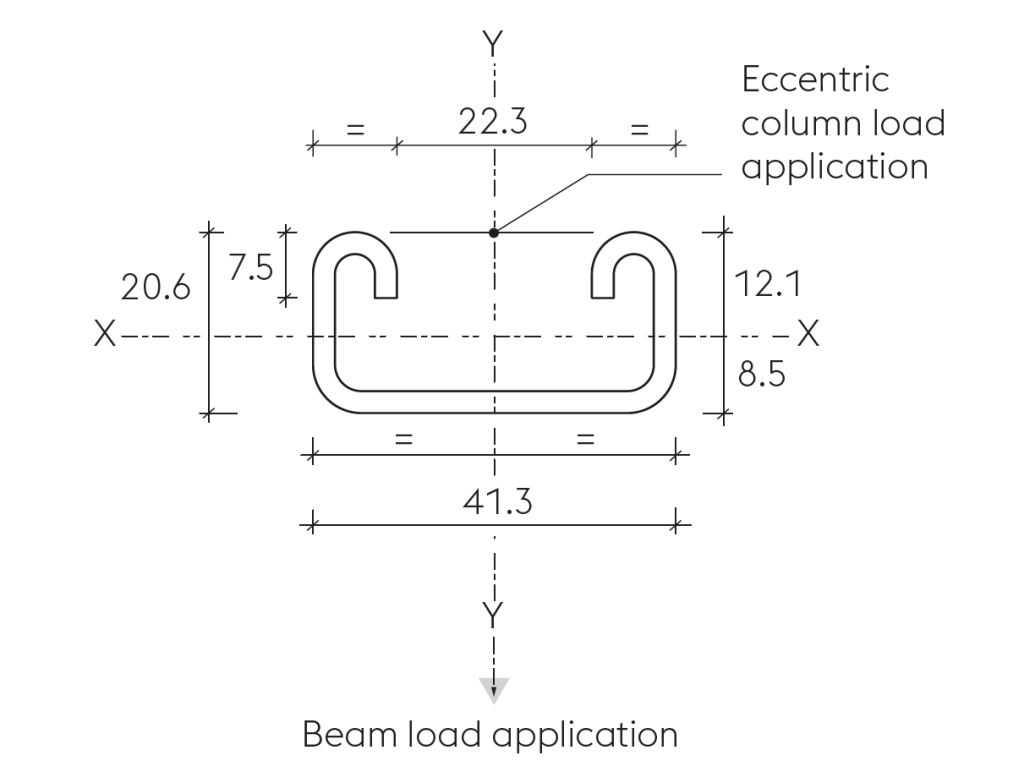

MS2125 - Metsec

Finish: pre galvanised = PG, post galvanised = HDG, stainless steel grade 1.4404 (316L) = SS

Loads not applicable to stainless steel, loads for stainless steel available upon request.

6mtr channel is a stock length to be cut down to suit.

Area cm²	Wt kg/m	Ixx cm⁴	Zxx (top) cm³	Zxx (btm) cm³	rxx cm	Iyy cm⁴	Zyy cm³	ryy cm
2.35	1.85	1.21	1.00	1.43	0.72	5.44	2.63	1.52

Le (m)	Safe Working Loads in kg Uniform		Def. Limit Span/ 200	Def. Limit Span/ 360	Safe Working Loads in kg Concentrated		Def. Limit Span/ 200	Def. Limit Span/ 360	Safe Column Loads kg at Centroid	Safe Column Loads kg at Face.
Le (m)	Load (kg)	Def. (mm)	Def. Limit Span/ 200	Def. Limit Span/ 360	Load (kg)	Def. (mm)	Def. Limit Span/ 200	Def. Limit Span/ 360	Safe Column Loads kg at Centroid	Safe Column Loads kg at Face.
0.6	237	2.64	237	150	118	2.11	118	93	2978	894
0.7	203	3.59	198	110	101	2.87	101	69	2471	821
0.8	177	4.68	151	84	89	3.75	89	53	2019	747
0.9	158	5.94	120	66	79	4.75	75	42	1657	677
1.0	142	7.33	97	54	71	5.86	61	34	1375	613
1.1	129	8.87	80	44	65	7.09	50	28	1156	556
1.2	118	10.55	67	37	59	8.44	42	23	984	505
1.3	109	12.38	57	32	55	9.91	36	20	Le ÷ rxx > 180
1.4	101	14.36	49	27	51	11.49	31	17
1.5	95	16.49	43	24	47	13.18	27	15
1.6	89	18.76	38	21	44	15.00	24	13
1.7	84	21.18	34	19	42	16.95	21	12
1.8	79	23.74	30	17	39	19.00	19	10
1.9	75	26.45	27	15	37	21.16	17	9
2.0	71	29.31	24	13	35	23.45	15	8
2.1	68	32.31	22	12	34	25.86	14	8
2.2	65	35.46	20	11	32	28.38	13	7
2.3	62	38.76	18	10	31	31.01	11	6
2.4	59	42.20	17	9	30	33.77	11	6
2.5	57	45.80	16	9	28	36.63	10	5
2.6	55	49.53	14	8	27	39.63	9	5
2.7	53	53.42	13	7	26	42.74	8	5
2.8	51	57.45	12	7	25	45.95	8	4
2.9	49	61.62	12	6	24	49.29	7	4
3.0	47	65.95	11	6	24	52.76	7	4
