Butt Purlin System

Single/odd Bays
Layout and Detailing.

The butt system is suitable for buildings with single bays or more, up to and including 25° roof pitch.

The butt system offers a simple cleat connection and is intended for smaller buildings, short or uneven spans, or light loading conditions.

The butt system caters for spans of up to 12m depending on the load to be applied and where the cladding or liner tray offers adequate lateral support by virtue of its screw fixings at 600mm maximum spacings to the purlins. This system can cater for single bays and can therefore be used in conjunction with other Metsec systems, or as a system in its own right.

Computer controlled production techniques apply the client’s individual mark numbers to all purlins automatically during the manufacturing process.

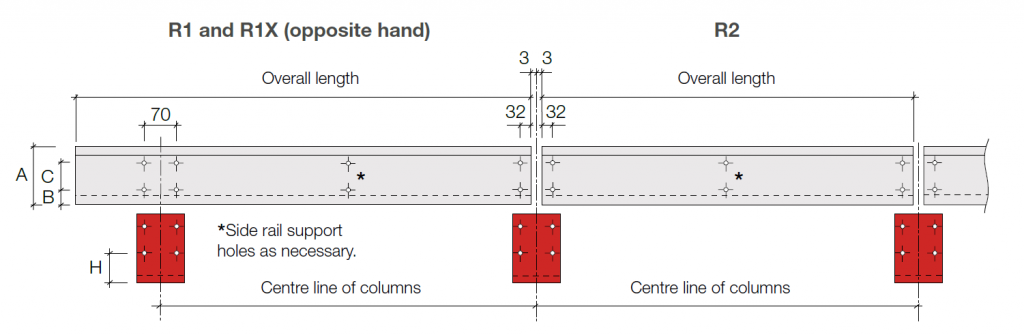

Single span system

Butt System (mm)

A	B	C	F
142	42	56	50
172	42	86	50
202	42	116	50
232	42	146	50
262	42	176	50
302	52	195	60
342	52	235	60

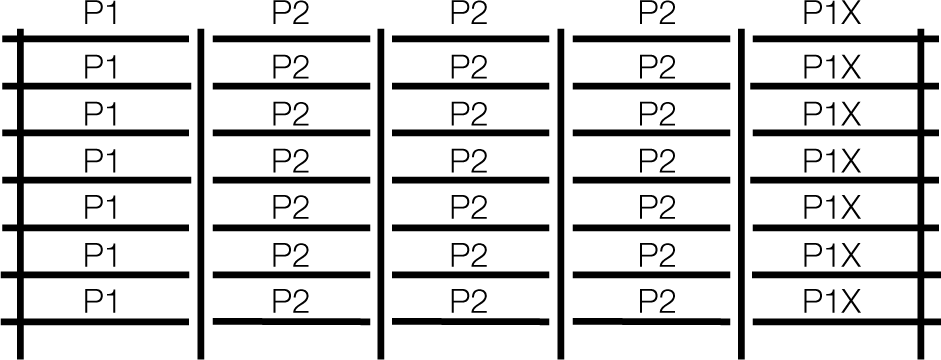

Typical single span arrangement indicating the purlin positions

Unless otherwise stated, all required holes are 18mm diameter for M16 bolts and are normally pierced in pairs on standard gauge lines.

For ‘General detailing’ notes see General Detailing Information.

Contact Information

voestalpine Metsec plc Purlins & Side Rails

Tel: +44 (0) 121 601 6000

Fax: +44 (0) 121 601 6065
