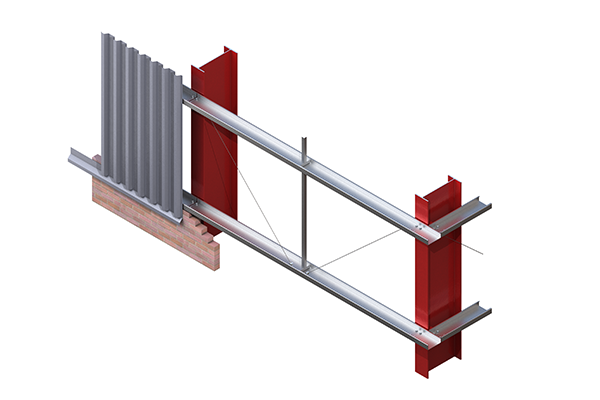

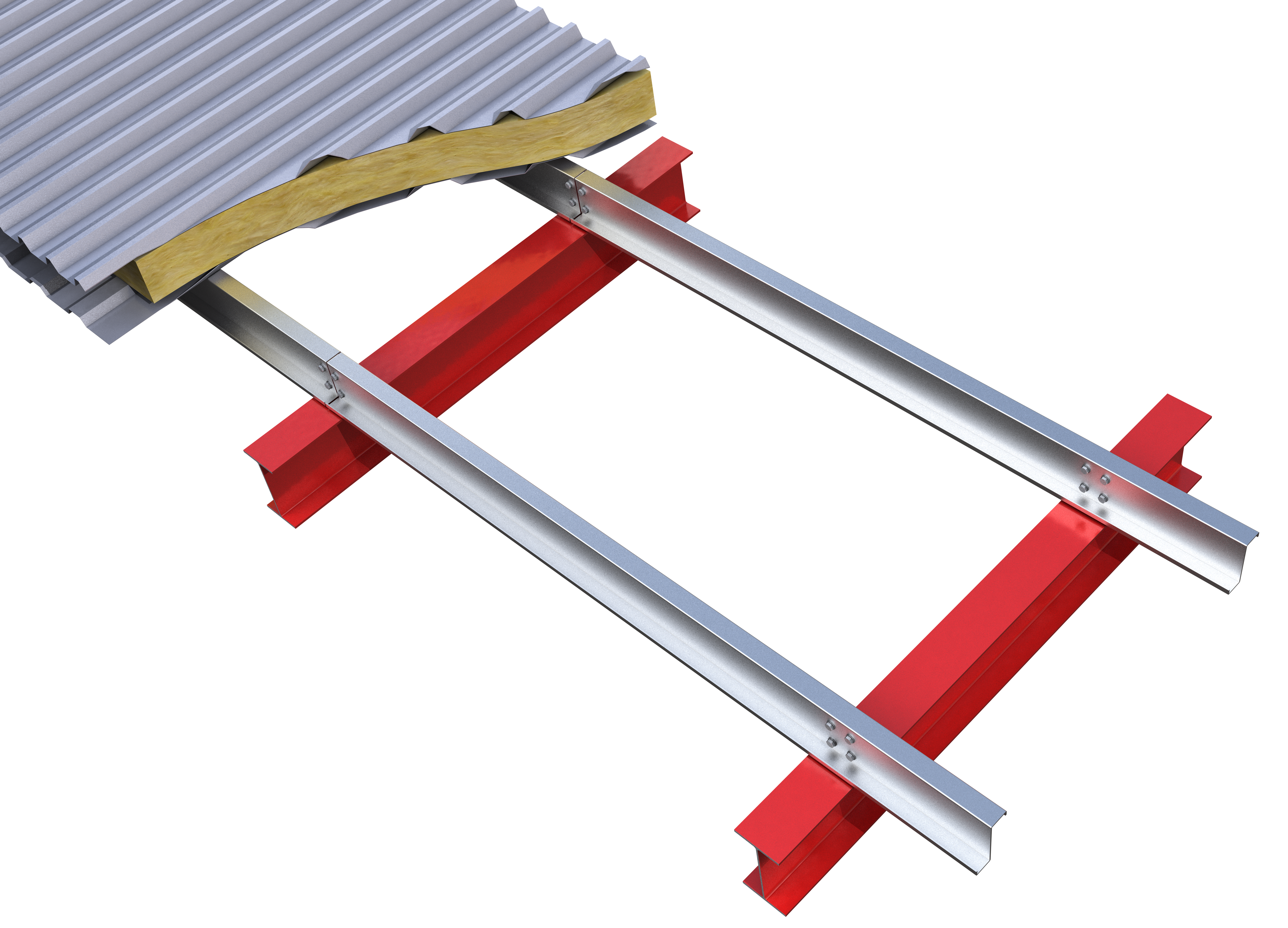

Butt Side Rail System

For Buildings with Single Bays or More.

The butt side rail system offers a simple cleat connection and is intended for smaller buildings, short or uneven spans, or light loading conditions.

This system can cater for single bays and can therefore be used in conjunction with other voestalpine Metsec systems or as a system in its own right.

The butt system caters for spans up to 15m depending on the load to be applied and where the cladding or liner tray offers adequate lateral support by virtue of its fixing: ie fixed according to the cladding manufacturer’s instructions.

Computer controlled production techniques apply the client’s individual mark numbers to all rails automatically during the manufacturing process.

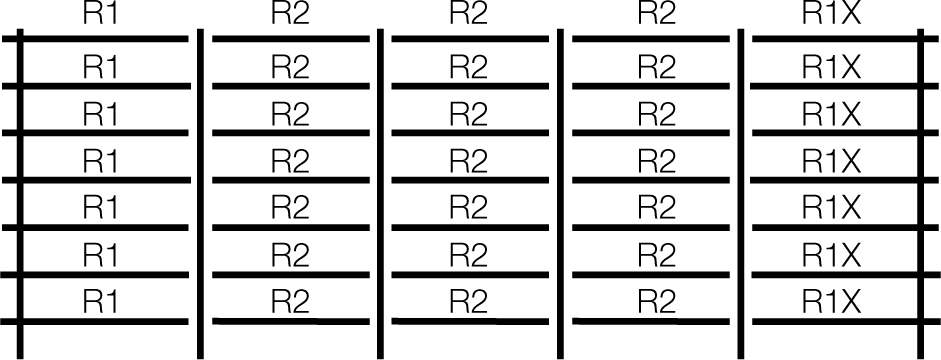

Single span layout

Single span lengths plus a variable overhang at each end.

C Section Detailing

C-section Butt system (mm)

A	B	C	H
142	43	56	50
172	43	86	50
202	43	116	50
232	43	146	50
262	43	176	50
302	53.5	195	60
342	53.5	235	60

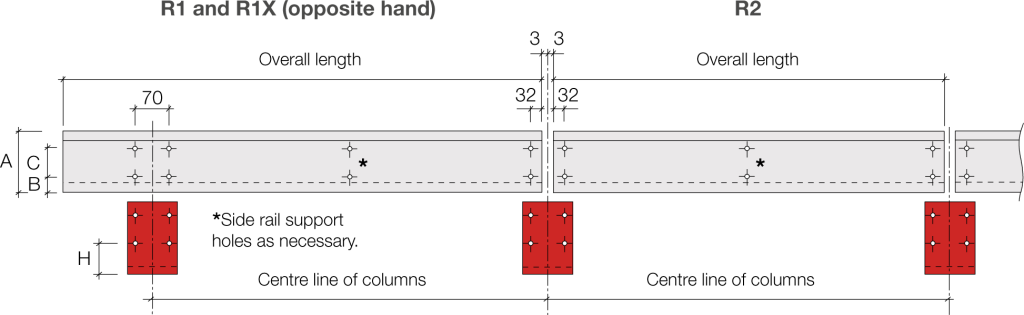

Z-section Detailing

Z-section Butt system (mm)

A	B	C	H
142	42	56	50
172	42	86	50
202	42	116	50
232	42	146	50
262	42	176	50
302	52	195	60
342	52	235	60

Unless otherwise stated, all required holes are 18mm diameter for M16 bolts and are normally pierced in pairs on standard gauge lines.
