Mezzanine Floor Cleats

Cleat Specification

Standard and non-standard cleats can be supplied for inset (web) mezzanine floor constructions.

Standard inset cleats are manufactured from 4mm and 5mm pre-hot dipped galvanised steel, Z275 coating, guaranteed yield strength 350 N/mm². Non-standard cleats by others or to special order.

All holes are 18mm diameter for M16 bolts grade 8.8.

Non-standard cleats can be supplied for oversail (top) floor construction to special order.

Download our purlin technical manual below for more information.

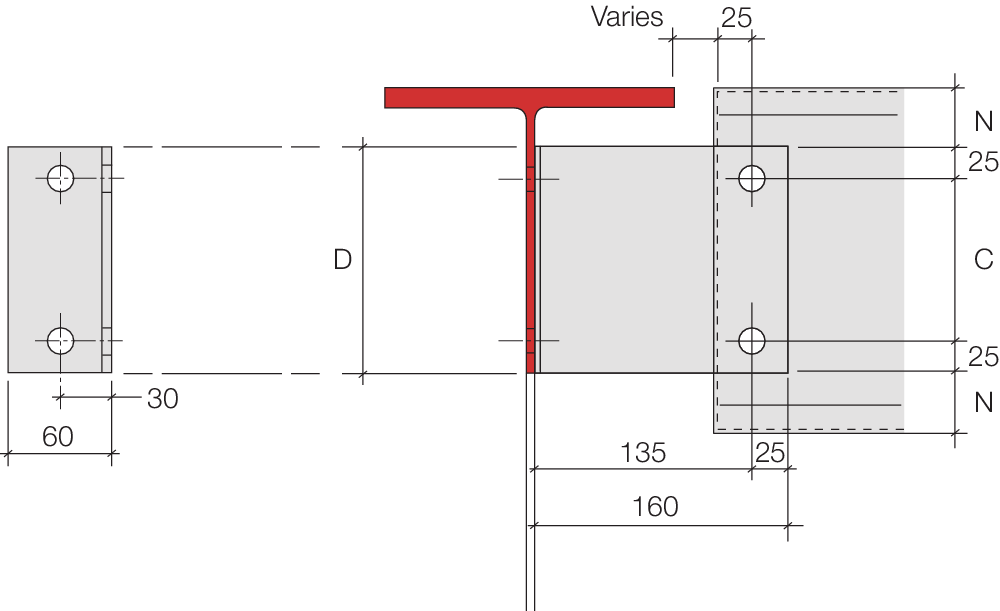

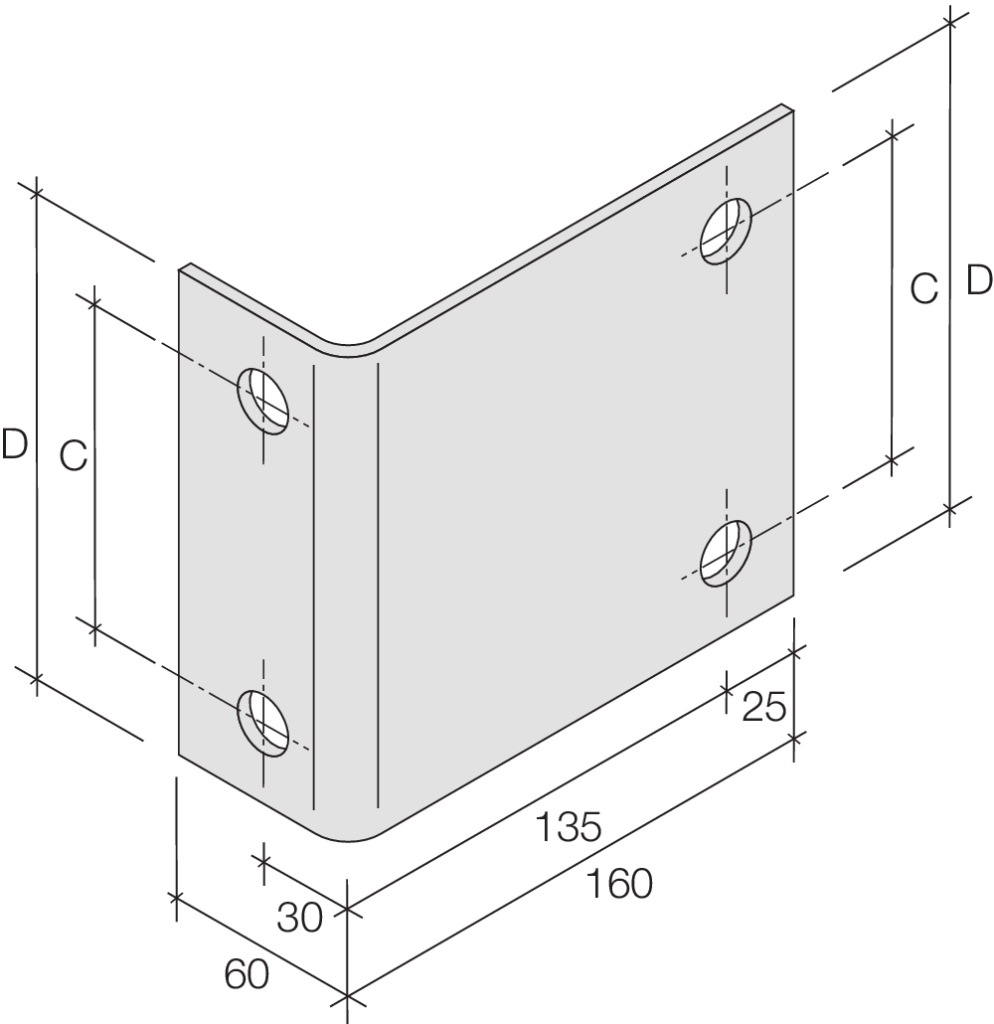

Mezzanine Inset (web) Cleats

Section Series	C (mm)	D (mm)	N (mm)	Max Weight (kg)
MIC 142 4/5	60	110	16.0	0.91
MIC 150 4/5	60	110	20.0	0.91
MIC 165 4/5	70	120	22.5	0.99
MIC 172 4/5	70	120	26.0	0.99
MIC 202 4/5	100	150	26.0	1.24
MIC 232 4/5	130	180	26.0	1.48
MIC 262 4/5	160	210	26.0	1.73
MIC 302 4/5	200	250	26.0	2.06
MIC 342 4/5	240	290	26.0	2.39

The Mezzanine inset cleat reference is the same as the section that it is being used in conjunction with, i.e:

MIC 1724 — 4mm thick inset cleat for a 172 section

MIC 2325 — 5mm thick inset cleat for a 232 section

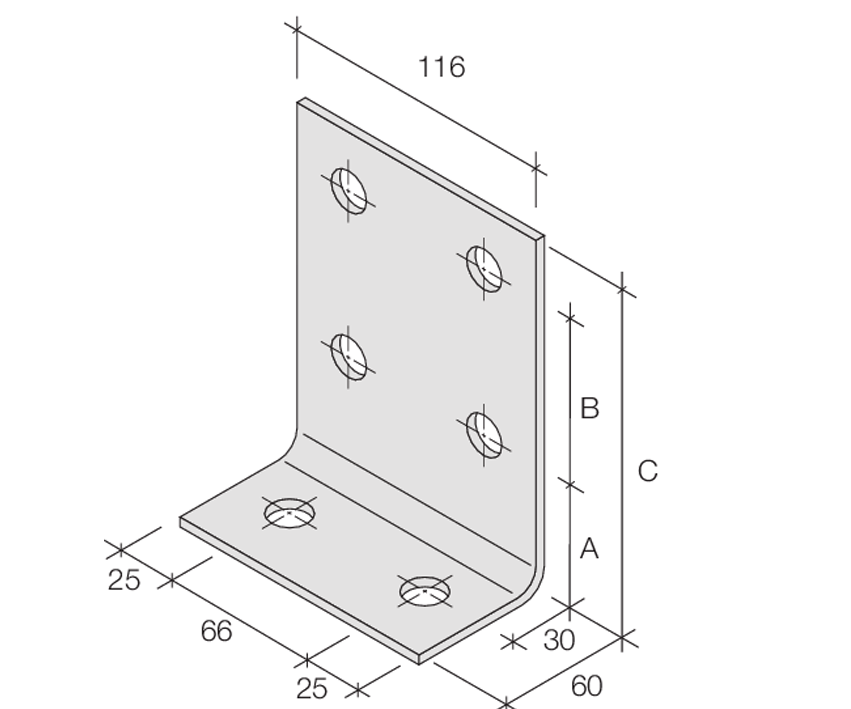

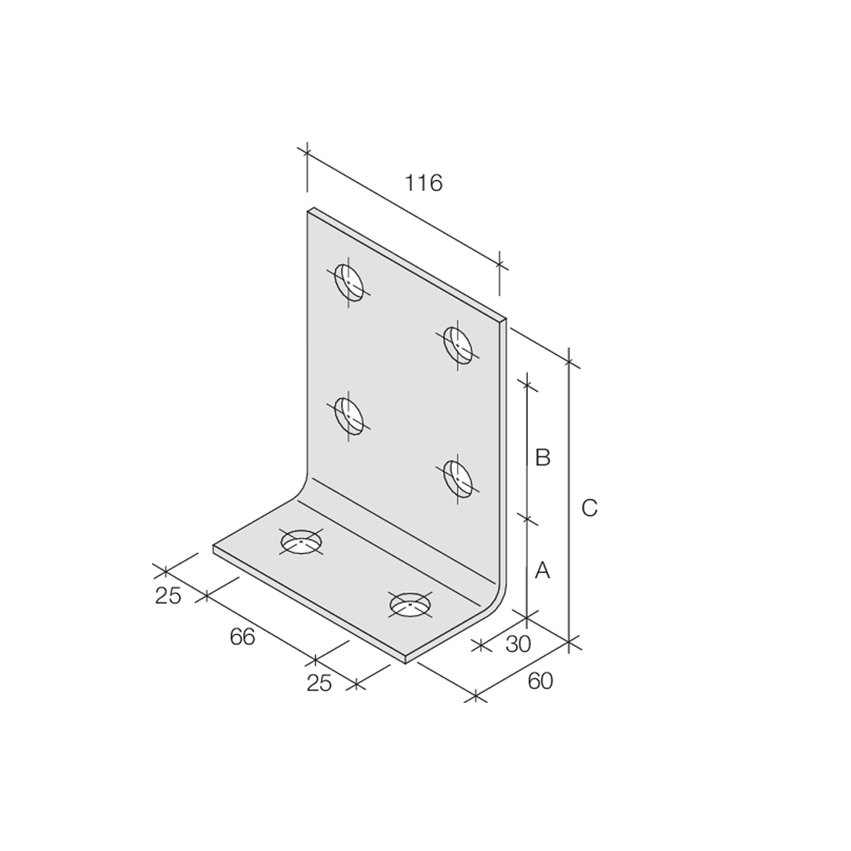

Mezzanine Oversail (top) Cleats

Section Series	A (mm)	B (mm)	C (mm)	Weight (kg)
MOC 142	49	60	134	0.71
MOC 150	53	60	138	0.72
MOC 165	55	70	150	0.76
MOC 172	59	70	154	0.78
MOC 202	59	100	184	0.89
MOC 232	59	130	214	1.00
MOC 262	59	160	244	1.11
MOC 302	59	200	284	1.25
MOC 342	59	240	324	1.40
