Mezzanine Floor Tie Bars

Mezzanine Floor Tie Bars

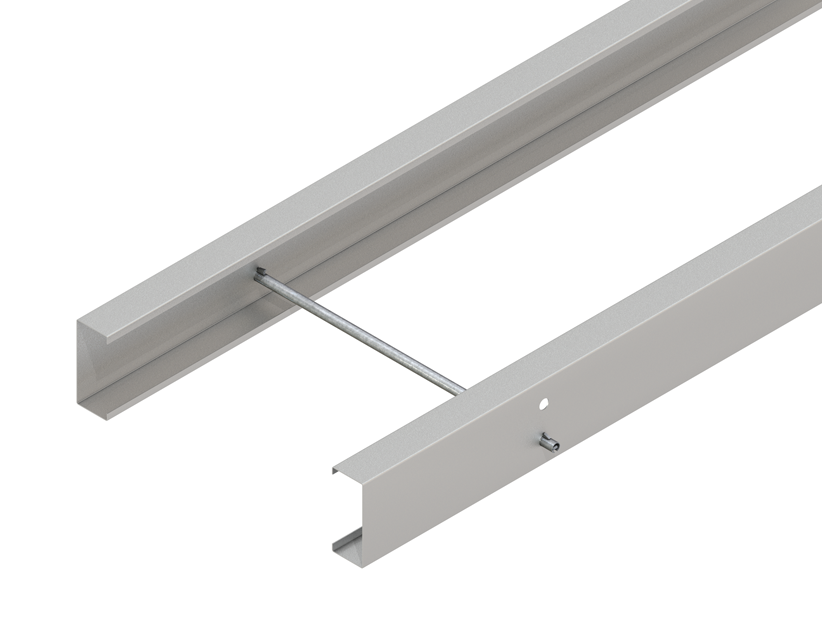

mezzanine tie bars

Rapid fix tie bar

Our rapid fix tie bar replaces threaded rod, nuts and washers, thereby greatly reducing mezzanine floor installation time.

Tie bars must be used in all flooring applications to prevent the floor beam from twisting.

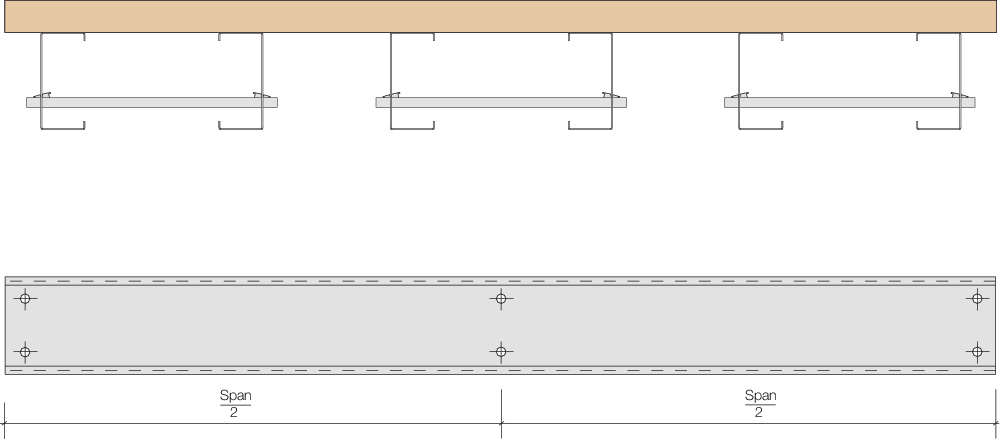

Tie bars are fitted at mid span location to the lower web holes of facing sections. Floor beams must have tie bars installed prior to the laying of decking materials.

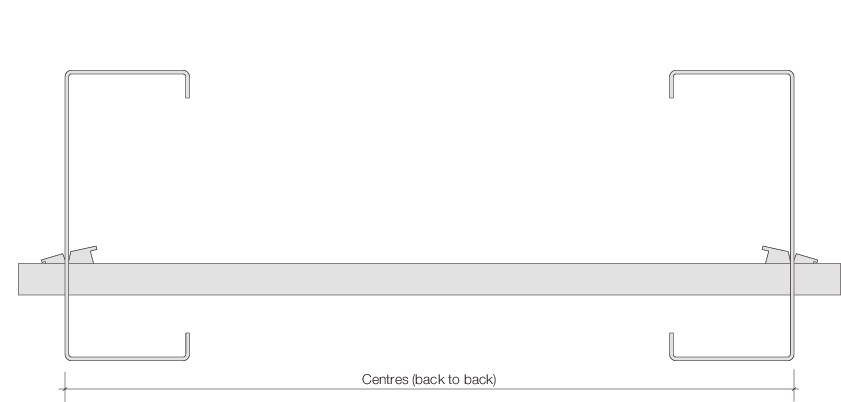

Rapid fix tie box 2
rapid fix tie box

Unless otherwise stated, all required holes are 18mm diameter for M16 bolts and are normally pierced in pairs on standard gauge lines.

Download our purlin technical manual for more information.
